關鍵詞： Cirrus , CS161x , LED驅動器

Cirrus公司的CS1610/11/12/13是數字控制集成電路,集成了臨界導通模式(CRM)升壓轉換器,可提恭PFC和調光功能,恒定輸出電流,效率高達90%,無閃爍調光,和IEC-61000-3-2兼容.CS1610/11用在控制準諧振反激拓?fù)?CS1612/13用于控制降壓拓?fù)?CS1610/12用于120VAC電壓,CS1611/13用于230VAC電壓,主要用于可調光LED裝飾燈,可調光LED照明,離線LED驅動器和商業照明.本文介紹了CS1610/11/12/13主要特性,方框圖,典型應用電路以及典型反激電路圖和降壓電路圖,以及CRD 1611-8W和CRD 1610-8W參考設計主要特性和指標.

The CS1610/11/12/13 is a digital control IC engineered to deliver a high-efficiency, cost-effective, flicker-free, phase-dimmable, solid-state lighting (SSL) solution for the incandescent lamp replacement market. The CS1610/11 is designed to control a quasi-resonant flyback topology. The CS1612/13 is designed to control a buck topology. The CS1610/12 and CS1611/13 are designed for 120VAC and 230VAC line voltage applications, respectively.

The CS1610/11/12/13 integrates a critical conduction mode (CRM) boost converter that provides power factor correction and dimmer compatibility with a constant output current, quasiresonant second stage. An adaptive dimmer compatibility algorithm controls the boost stage and dimmer compatibility operation mode to enable flicker-free operation to <2% output current with leading-edge, trailing-edge, and digital dimmers (dimmers with an integrated power supply).

CS1610/11/12/13主要特性:

• Best-in-Class Dimmer Compatibility

- Leading-edge (TRIAC) Dimmers

- Trailing-edge Dimmers

- Digital Dimmers (with Integrated Power Supply)

• Up to 90% Efficiency

• Flicker-free Dimming

• 0% Minimum Dimming Level

• Quasi-resonant Second Stage with Constant-current Output

Flyback and Buck

• Fast Startup

• Tight LED Current Regulation: Better than ±5%

• Primary-side Regulation (PSR)

• >0.9 Power Factor

• IEC-61000-3-2 Compliant

• Soft Start

• Protections:

- Output Open/Short

- Current-sense Resistor Open/Short

- External Overtemperature Using NTC

CS1610/11/12/13應用:

• Dimmable Retrofit LED Lamps

• Dimmable LED Luminaries

• Offline LED Drivers

• Commercial Lighting

2012-4-1 15:03:07 上傳

下載附件 (22.78 KB)

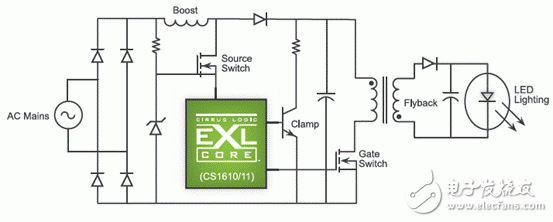

圖1.CS1610/11/12/13 方框圖

2012-4-1 15:03:07 上傳

下載附件 (18.61 KB)

圖2.CS1610/11/12/13 典型應用電路圖

2012-4-1 15:03:07 上傳

下載附件 (18.98 KB)

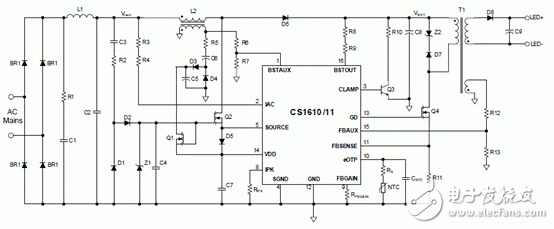

圖3.CS1610/11典型反激電路圖

2012-4-1 15:03:07 上傳

下載附件 (18.72 KB)

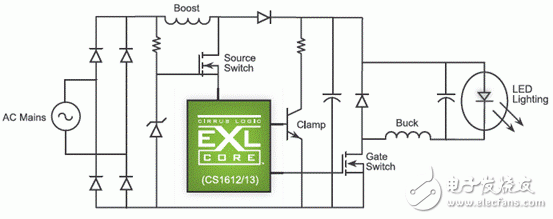

圖4.CS1612/13典型降壓電路圖

CRD 1611-8W參考設計

The CRD 1611-8W reference design demonstrates the performance of the CS1611 resonant mode AC/ DC dimmable LED driver IC with a 550 mA output driving 4 LEDs in series. It offers best-in-class dimmer compatibility with leading edge, trailing edge, and digital dimmers. The form factor is targeted to fit into many LED bulb applications (A19, PAR).

CRD 1611-8W參考設計主要特性:

ƒƒ Quasi-resonant flyback with constant current output

ƒƒ Flicker-free dimming

ƒƒ Line voltage 230 VAC, ±10%

ƒƒ Rated input power: 8 W

ƒƒ Rated output power: 6.6 W

ƒƒ Efficiency: 83% at 550 mA, for 4 X LEDs in series

ƒƒ Low component count

ƒƒ Supports Cirrus Logic product CS1611
