關鍵詞： NXP , TL5高效熒光燈 , UBA2016A , 電源

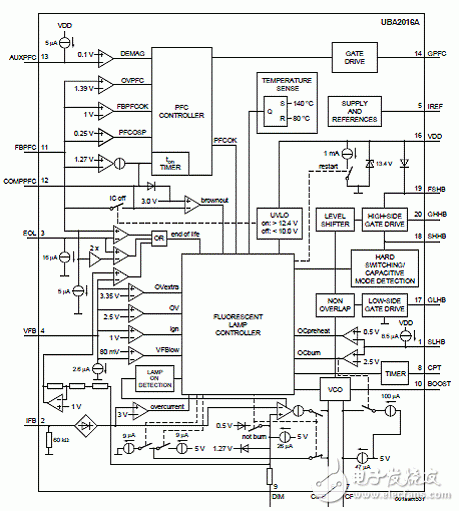

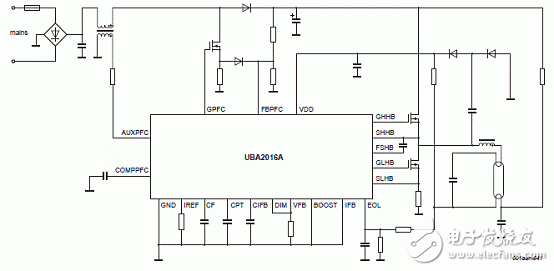

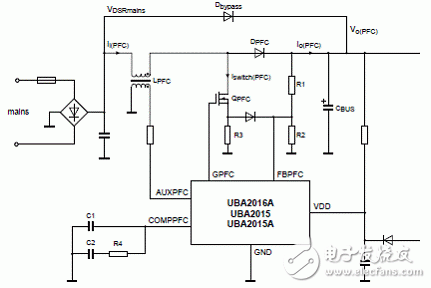

NXP公司的UBA2016A/15/15A 是具有PFC,線性調光和升壓功能的600V熒光燈驅動器.IC包含了熒光燈控制模塊,半橋驅動器,內置了臨界導電模式PFC控制器/驅動器和多種保護機制,電源電壓高達600V,火線電壓高達390V.本文介紹了UBA2016A/15/15A主要特性和優勢,方框圖, 基本的PFC應用框圖以及多種TL或CFL應用電路, 參考設計(230VAC)板指標,框圖,電路圖,材料清單,PCB布局圖與TL5燈連接電路圖.

UBA2016A/15/15A:600 V fluorescent lamp driver with PFC, linear dimming and boost function

The UBA2016A/15/15A are high voltage Integrated Circuits (IC) intended to drive fluorescent lamps with filaments such as Tube Lamps (TL) and Compact Fluorescent Lamps (CFL) in general lighting applications. The IC comprises a fluorescent lamp control module, half-bridge driver, built-in critical conduction mode Power Factor Correction (PFC) controller/driver and several protection mechanisms. The IC drives fluorescent lamp(s) using a half-bridge circuit made of two MOSFETs with a supply voltage of up to 600 V.

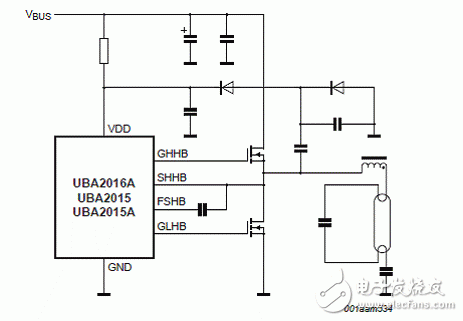

The UBA2016A/15/15A are designed to be supplied by a start-up bleeder resistor and a dV/dt supply from the half-bridge circuit, or any other auxiliary supply derived from the half-bridge or the PFC. The supply current of the IC is low. An internal clamp limits the supply voltage.

UBA2016A/15/15A主要特性:

 Power factor correction features:

 Integrated 4-pin critical conduction mode PFC controller/driver

 Open and short pin-short protection on PFC feedback pin

 Overcurrent protection

 Overvoltage protection

 Half-bridge driver features:

 Integrated level-shifter for the high-side driver of the half-bridge

 Integrated bootstrap diode for the high-side driver supply of the half-bridge

 Independent non-overlap time

 Fluorescent lamp controller features:

 Linear dimming (UBA2016A and UBA2015A only)

 EOL (End-Of-Life) detection (both symmetrical and asymmetrical)

 Adjustable preheat time

 Adjustable preheat current

 Adjustable fixed frequency preheat (UBA2015 and UBA2015A only)

 Lamp ignition failure detection

 Ignition detection of all lamps at multiple lamps with separate resonant tanks

 Second ignition attempt if first failed

 Constant output power independent of mains voltage variations

 Automatic restart after changing lamps

 Adjustable lamp current boost at start-up (UBA2016A only)

 Lamp current control

 Enable input (UBA2015 and UBA2015A only)

 Protection

 Hard switching/capacitive mode protection

 Half-bridge overcurrent (coil saturation) protection

 Lamp overvoltage (lamp removal) protection

 Temperature protection

UBA2016A/15/15A應用:

Intended for fluorescent lamp ballasts with either a dimmable (UBA2016A and UBA2015A) or a fixed (UBA2015) output and PFC for AC mains voltages of up to 390 V.
