MAX16834 是Maxim公司的 電流模式高亮LED(HBLED)驅動器,可用于升壓,升壓-降壓,SEPIC和高邊降壓拓?fù)? 工作電壓4.75V 到 28V,3000:1 PWM調光/模擬調光,可編頻率從100kHz到1MHz,主要用在單串LED LCD背光,汽車前后照明,投映系統RGB LED光源,點和環境照明以及DC/DC升壓/升-降壓轉換器.本文介紹了MAX16834主要特性,方框圖,多種應用電路以及112W升壓LED驅動器參考設計,電路圖和材料清單(BOM).

The MAX16834 is a current-mode high-brightness LED (HB LED) driver for boost, boost-buck, SEPIC, and highside buck topologies. In addition to driving an n-channel power MOSFET switch controlled by the switching controller, it also drives an n-channel PWM dimming switch to achieve LED PWM dimming. The MAX16834 integrates all the building blocks necessary to implement a fixed-frequency HB LED driver with wide-range dimming control.

The MAX16834 features constant-frequency peak current- mode control with programmable slope compensation to control the duty cycle of the PWM controller.

A dimming driver designed to drive an external n-channel MOSFET in series with the LED string provides wide-range dimming control up to 20kHz. In addition to PWM dimming, the MAX16834 provides analog dimming using a DC input at REFI. The programmable switching frequency (100kHz to 1MHz) allows design optimization for efficiency and board space reduction.

A single resistor from RT/SYNC to ground sets the switching frequency from 100kHz to 1MHz while an external clock signal at RT/SYNC disables the internal oscillator and allows the MAX16834 to synchronize to an external clock. The MAX16834’s integrated highside current-sense amplifier eliminates the need for a separate high-side LED current-sense amplifier in boost-buck applications.

The MAX16834 operates over a wide supply range of 4.75V to 28V and includes a 3A sink/source gate driver for driving a power MOSFET in high-power LED driver applications. It can also operate at input voltages greater than 28V in boost configuration with an external voltage clamp. The MAX16834 is also suitable for DCDC converter applications such as boost or boostbuck.

Additional features include external enable/ disable input, an on-chip oscillator, fault indicator output (FLT) for LED open/short or overtemperature conditions, and an overvoltage protection sense input (OVP+) for true overvoltage protection.

The MAX16834 is available in a thermally enhanced 4mm x 4mm, 20-pin TQFN-EP package and in a thermally enhanced 20-pin TSSOP-EP package and is specified over the automotive -40℃ to +125℃ temperature range.

MAX16834主要特性:

_ Wide Input Operating Voltage Range (4.75V to 28V)

_ Works for Input Voltage > 28V with External Voltage Clamp on VIN for Boost Converter

_ 3000:1 PWM Dimming/Analog Dimming

_ Integrated PWM Dimming MOSFET Driver

_ Integrated High-Side Current-Sense Amplifier for LED Current Sense in Boost-Buck Converter

_ 100kHz to 1MHz Programmable High-Frequency Operation

_ External Clock Synchronization Input

_ Programmable UVLO

_ Internal 7V Low-Dropout Regulator

_ Fault Output (FLT) for Overvoltage, Overcurrent, and Thermal Warning Faults

_ Programmable True Differential Overvoltage Protection

_ 20-Pin TQFN-EP and TSSOP-EP Packages

MAX16834應用:

Single-String LED LCD Backlighting

Automotive Rear and Front Lighting

Projection System RGB LED Light Sources

Architectural and Decorative Lighting (MR16, M111)

Spot and Ambient Lights

DC-DC Boost/Boost-Buck Converters

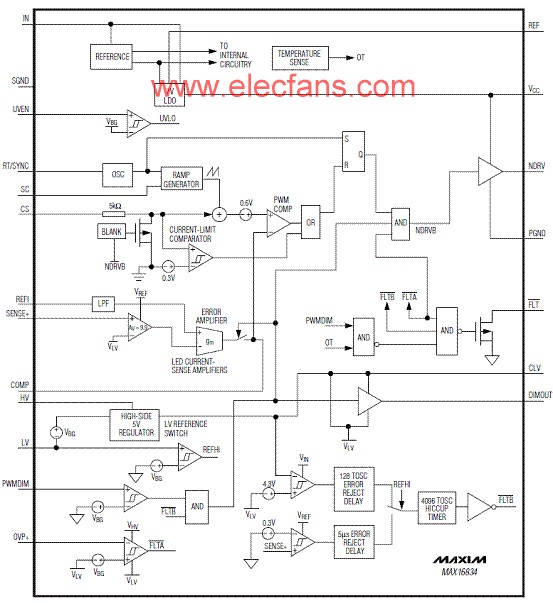

圖1.MAX16834內部方框圖

圖2.MAX16834升壓LED驅動器

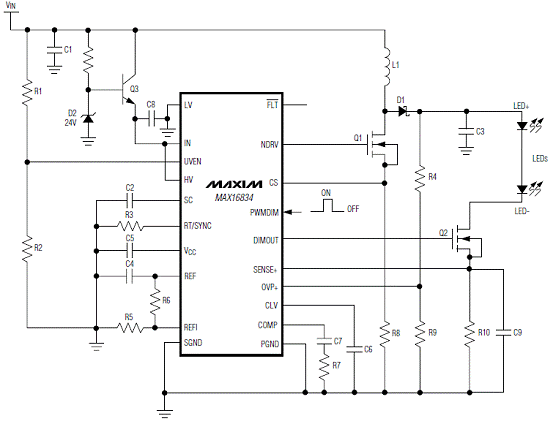

圖3.MAX16834升壓-降壓LED驅動器(VLED+ < 28V)

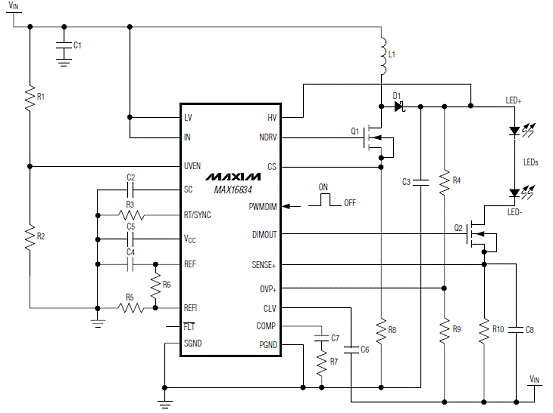

圖4.MAX16834帶汽車負載突變保護的升壓LED驅動器

圖5.MAX16834高邊降壓LED驅動器

圖6.MAX16834升壓DC/DC轉換器

圖7.MAX16834升壓-降壓DC/DC轉換器

全陶瓷電容的112W升壓長串LED驅動器參考設計

112W boost driver for long strings of LEDs using all ceramic capacitors

This is a reference design for a 112.5W boost LED driver that uses the MAX16834 for long strings of LEDs. These long LED strings are commonly found in streetlights and parking garage lights.

Input voltage: 24VDC ±5% (at 1.49A)

VLED configuration: Two parallel strings. Each string consists of 19 WLEDs and a 5Ω resistor for current balancing. Current is 750mA per sting for a total of 1.5A into 75V.

Dimming: 50μs (min) on-pulse for up to a 200:1 dimming ratio with a 100Hz dimming frequency

圖8.112W升壓長串LED驅動器參考設計外形圖

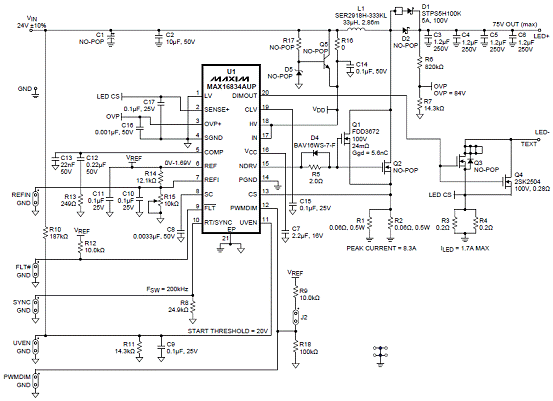

圖9.112W升壓長串LED驅動器參考設計電路圖

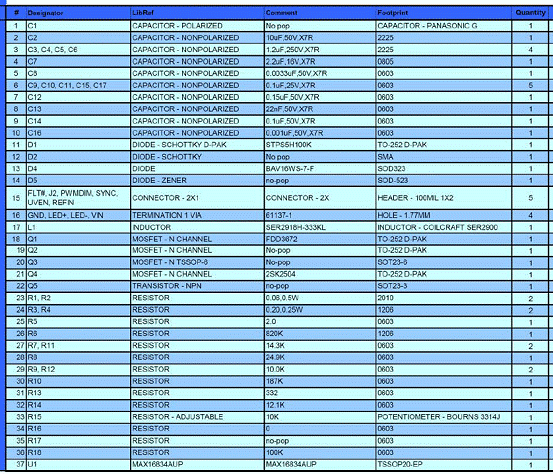

112W升壓長串LED驅動器參考設計材料清單(BOM):
