ADI公司的ADP1031是具有七個數字隔離器的三路隔離微功耗管理（PMU）單元，包括隔離的反激DC/DC穩壓器，反相的DC/DC穩壓器和降壓DC/DC穩壓器。此外，還包括四個高速SPI隔離通路和三個通用的隔離器。輸入電壓從4.5V到60V，產生隔離VOUT1輸出電壓6V-28V（可調整版）或21V-24V（固定版），VOUT2為工廠可編程電壓+5.15V，+5.0V或+3.3V，VOUT3為可調整輸出電壓-24V到-5V，主要用在工業自動化和過程控制，儀器和數據采集系統以及其數據和電源隔離。本文介紹了ADP1031主要特性， 簡化框圖， 應用電路圖以及評估板ADP1031CP-EVALZ主要特性，電路圖，材料清單和PCB設計圖。

Three-Channel， Isolated Micropower Management Unit with Seven Digital IsolatorsThe ADP1031 is a high performance， isolated micropower management unit （PMU） that combines an isolated flyback dc-to-dc regulator， an inverting dc-to-dc regulator， and a buck dc-to-dc regulator， providing three isolated power rails. Additionally， the ADP1031 contains four， high speed， serial peripheral interface （SPI） isolation channels and three general- purpose isolators for channel to channel applications where low power dissipation and small solution size is required.

Operating over an input voltage range of +4.5 V to +60 V， the ADP1031 generates isolated output voltages of +6 V to +28 V （adjustable version） or+ 21 V and +24 V （fixed versions） for VOUT1， factory programmable voltages of +5.15 V， +5.0 V， or +3.3 V for VOUT2， and an adjustable output voltages of ?24 V to ?5 V for VOUT3. By default， the ADP1031 flyback regulator operates at a 250 kHz switching frequency and the buck and inverting regulators operate at 125 kHz. All three regulators are phase shifted relative to each other to reduce electromagnetic interference （EMI）。 The ADP1031 can be driven by an external oscillator in the range of 350 kHz to 750 kHz to ease noise filtering in sensitive applications. The digital isolators integrated in the ADP1031 use Analog Devices，Inc.， iCoupler? chip scale transformer technology， optimized for low power and low radiated emissions. The ADP1031 is available in a 9 mm×7 mm， 41-lead LFCSP and is rated for a ?40℃ to +125℃ operating junction temperature range.

ADP1031主要特性：

Wide input supply voltage range： 4.5 V to 60 V

Integrated flyback power switch

Generates isolated， independent bipolar outputs and factory programmable buck output

VOUT1： 21 V， 24 V or 6 V to 28 V

VOUT2： 5.15 V， 5.0 V， or 3.3 V

VOUT3： ?24 V to ?5 V

Uses a 1:1 ratio transformer for simplified transformer design

Peak current limiting and OVP for flyback， buck， and inverting regulators

Precision enable input and power-good output

Adjustable switching frequency via SYNC input Internal compensation and soft start control per regulator High speed， low propagation delay， SPI signal isolation channels

Three， 100 kbps general-purpose isolated data channels 9 mm × 7 mm LFCSP form factor enables small overall solution size

?40℃ to +125℃ operating junction temperature range

Conforms to CISPR11 Class B radiated emission limits

Safety and regulatory approvals （pending）

UL recognition： 2500 V rms for 1 minute per UL 1577

CSA Component Acceptance Notice 5A

300 V rms basic insulation between slave， master， and field power domains （IEC 61010-1， pending）

VDE certificate of conformity

DIN V VDE 0884-10 （VDE 0884-10）：2006-12

VIORM = 565 VPEAK

ADP1031應用：

Industrial automation and process control

Instrumentation and data acquisition systems

Data and power isolation

圖1.ADP1031簡化框圖

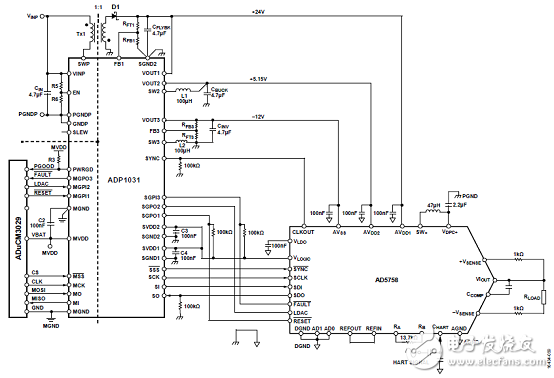

圖2.采用AD5758的ADP1031應用電路圖

評估板ADP1031CP-EVALZ

The ADP1031CP-EVALZ is a fully featured evaluation board that demonstrates the functionality of the ADP1031 dc-to-dc converters and the isolated data channels.

Users can evaluate ADP1031 device measurements， such as line regulation， load regulation， and efficiency with the evaluation board. The board also assists in evaluating the functionality of the isolated digital channels. Device features including oscillator synchronization， soft start， power good monitoring， sequencing， and slew rate control can be demonstrated on the evaluation board.

Each board model in the evaluation kit has a different output configuration. Only one board model is included in the kit but users can order from five different board models to fit their application needs.

Refer to the ADP1031 data sheet for more details about the dc-to-dc converters and isolated data channels.

評估板ADP1031CP-EVALZ主要特性：

Input voltage range： 4.5 V to 60 V

Output voltage VOUT1： 24 V or 21 V

Output voltage VOUT2： 5.15 V

Output voltage VOUT3： ?15 V

Enable and disable controls

Slew rate controls

Access to SYNC pin for oscillator synchronization

Access to all seven data channels

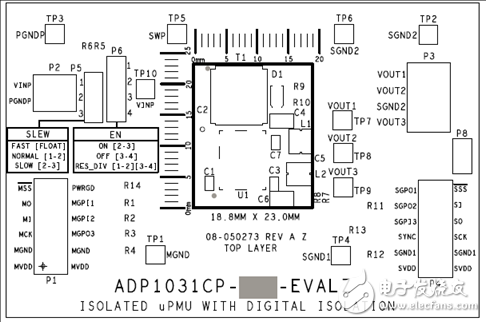

圖3.評估板ADP1031CP-EVALZ外形圖

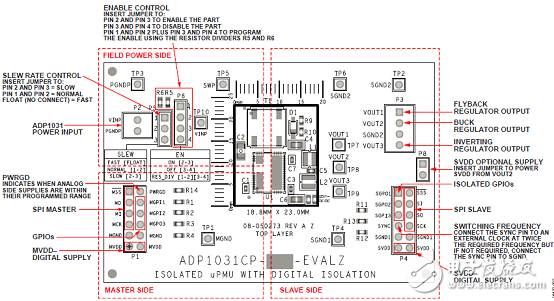

圖4.評估板ADP1031CP-EVALZ概略圖

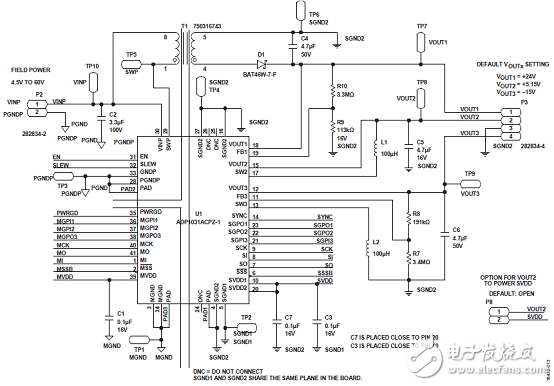

圖5.評估板ADP1031CP-EVALZ電路圖（1）

圖6.評估板ADP1031CP-EVALZ電路圖（2）：連接器和外設

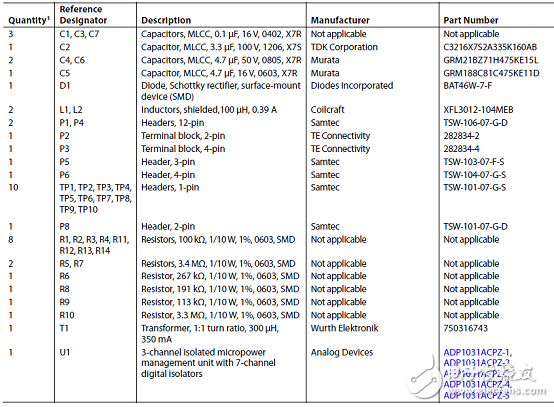

評估板ADP1031CP-EVALZ材料清單：

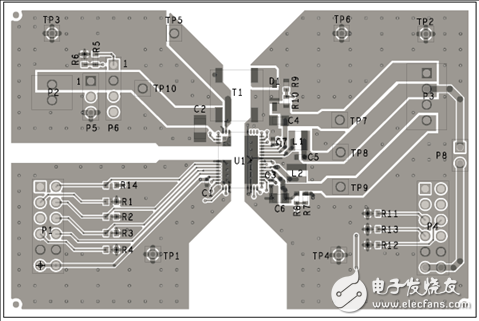

圖7.評估板ADP1031CP-EVALZ PCB設計圖（1）：頂層

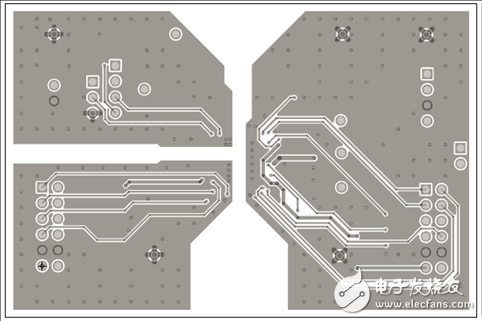

圖8.評估板ADP1031CP-EVALZ PCB設計圖（2）：底層

圖9.評估板ADP1031CP-EVALZ PCB設計圖（3）：頂層絲印

詳情請見：

https://www.analog.com/media/en/technical-documentation/data-sheets/ADP1031.pdf

和https://www.analog.com/media/en/technical-documentation/user-guides/ADP1031CP-EVALZ-UG-1226.pdf
