TI公司的LMZM33606是3.5V-36V輸入1V-20V輸出 6A功率模塊,包含了6A DC/DC轉換器和功率MOSFET,屏蔽電感和小型封裝的無源元件.外接元件僅需要四個,設計過程不需要回路補償和選擇電感元件. 85℃時輸出功率高達50W,功率結溫–40℃ 到 +125℃,主要用在工業,醫療和測試設備,通用寬VIN穩壓器以及反向輸出應用.本文介紹了LMZM33606主要特性,功能框圖,應用電路以及評估模塊LMZM33606 EVM主要特性,電路圖,材料清單和PCB設計圖.

The LMZM33606 power module is an easy-to-useintegrated power solution that combines a 6-A DC/DCconverter with power MOSFETs, a shielded inductor,and passives in a low-profile package. This powersolution requires as few as four external componentsand eliminates the loop compensation and inductorpart selection from the design process.

The 16 mm × 10 mm × 4 mm, 41-pin, QFN packageis easy to solder onto a printed circuit board andallows a compact, low-profile point-of-load design.

The LMZM33606 feature set includes power good,adjustable soft start, tracking, synchronization,programmable UVLO, prebias start-up, selectableauto or FPWM modes, as well as over-current andover-temperature protection. The LMZM33606 can beconfigured as negative output voltage for invertingapplications.

The LMZM33606 is a full-featured 36-V input, 6-A, synchronous step-down converter with controller, MOSFETs,shielded inductor, and control circuitry integrated into a low-profile, overmolded package. The device integrationenables small designs, while providing the ability to adjust key parameters to meet specific design requirements.

The LMZM33606 provides an output voltage range of 1 V to 20 V. An external resistor divider is used to adjustthe output voltage to the desired value. The switching frequency can also be adjusted, by either an externalresistor or a sync signal, which allows the LMZM33606 to optimize efficiency for a wide variety of input andoutput voltage conditions. The device provides accurate voltage regulation over a wide load range by using a　precision internal voltage reference. The EN pin can be pulled low to put the device into standby mode to reduceinput quiescent current. The system undervoltage lockout can be adjusted using a resistor divider on the EN pin.

A power-good signal is provided to indicate when the output is within its nominal voltage range. Thermalshutdown and current limit features protect the device during an overload condition. A 41-pin, QFN package thatincludes exposed bottom pads provides a thermally enhanced solution for space-constrained applications.

LMZM33606主要特性:

1? Small Complete Solution Size: < 250 mm2
– Requires as few as 4 External Components
– 16 mm × 10 mm × 4 mm QFN Package
? Supports 5-V, 12-V, 24-V, 28-V Input Rails
– 1-V to 20-V Output Voltage Range
– Pin Compatible with 4-A LMZM33604
? Meets EN55011 Radiated Emissions
? Configurable as Negative Output Voltage
? Adjustable Features for Design Flexibility
– Switching Frequency (350 kHz to 2.2 MHz)
– Synchronization to an External Clock
– Selectable Auto Mode or FPWM Mode
– Auto: Boost Efficiency at Light Loads
– FPWM: Fixed Frequency Over Entire Load
– Adjustable Soft Start and Tracking Input
– Precision Enable to Program System UVLO
? Protection Features
– Hiccup Mode Current Limit
– Overtemperature Protection
– Power-Good Output
? Operate in Rugged Environments
– Up to 50-W Output Power at 85℃, No Airflow
– Operating Junction Range: –40℃ to +125℃
– Operating Ambient Range: –40℃ to +105℃
– Shock and Vibration Tested to Mil-STD-883D

LMZM33606應用:

? Industrial, Medical and Test Equipment
? General Purpose Wide VIN Regulation
? Inverted Output Applications

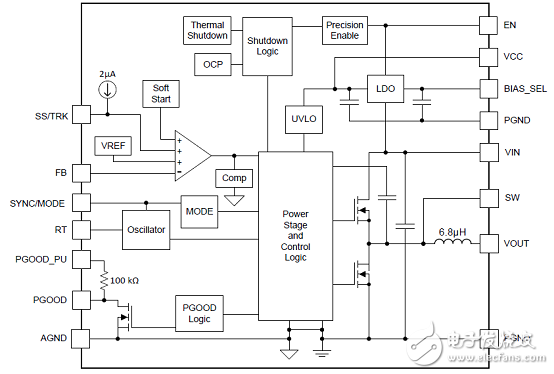

圖1.LMZM33606功能框圖

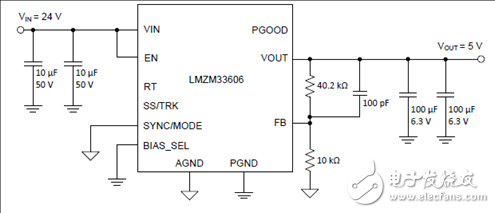

圖2.LMZM33606典型應用電路圖

評估模塊LMZM33606 EVM

These evaluation modules (EVMs) are designed as an easy-to-use platform that facilitates an extensiveevaluation of the features and performance of the LMZM33604 and LMZM33606 power module. Thisguide provides information on the correct usage of the EVMs and an explanation of the numerous testpoints on the board.

These EVMs feature either the LMZM33604 or LMZM33606 synchronous-buck power module configuredfor operation with typical 3.5-V to 36-V input bus applications. The output voltage is set to one of fivepopular values by using a configuration jumper. Similarly, the switching frequency is set to one of fivevalues with a jumper. The EVM supplies the full output current rating of the device. Input and outputcapacitors are included on the board to accommodate the entire range of input voltage and the selectableoutput voltages on the EVM. Monitoring test points are provided to allow measurement of efficiency,power dissipation, input ripple, output ripple, line and load regulation, and transient response. Control testpoints and component footprints are provided for use of the EN, PGOOD, BIAS, and SYNC features of theLMZM33606 device. The EVMs use a recommended PCB layout that maximizes thermal performance andminimizes output ripple and noise.
?

圖3.評估模塊LMZM33606 EVM用戶接口

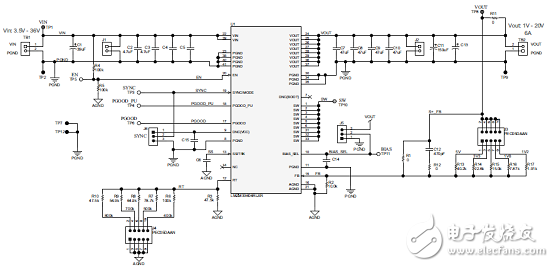

圖4.評估模塊LMZM33606 EVM電路圖

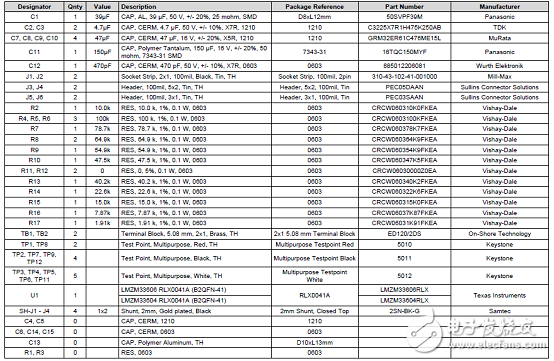

評估模塊LMZM33606 EVM材料清單:

圖5.評估模塊LMZM33606 EVM PCB設計圖(1)

圖6.評估模塊LMZM33606 EVM PCB設計圖(2)

圖7.評估模塊LMZM33606 EVM PCB設計圖(3)

圖8.評估模塊LMZM33606 EVM PCB設計圖(4)

圖9.評估模塊LMZM33606 EVM PCB設計圖(5)

圖10.評估模塊LMZM33606 EVM PCB設計圖(6)
?
