JACO卡套式接頭為NPT螺紋，適用于外徑為1/8"-7/8"的英制尺寸管道。
接頭有四種材質：N=自然色尼龍（Nylon）、C=自然色共聚甲醛（Celcon）、P=白色聚丙烯（GFPP）、K=自然色聚偏二氟乙烯（PVDF）。
螺帽有3種類型：O=一體化卡套式、PG=塑料卡套式、SG=不銹鋼卡套式
注：請根據實際需要選擇接頭材質及螺帽類型
如需定制公制尺寸、BSPT螺紋和黑色卡套式接頭，請留言聯(lián)系廣州市賽拓儀器科技有限公司。

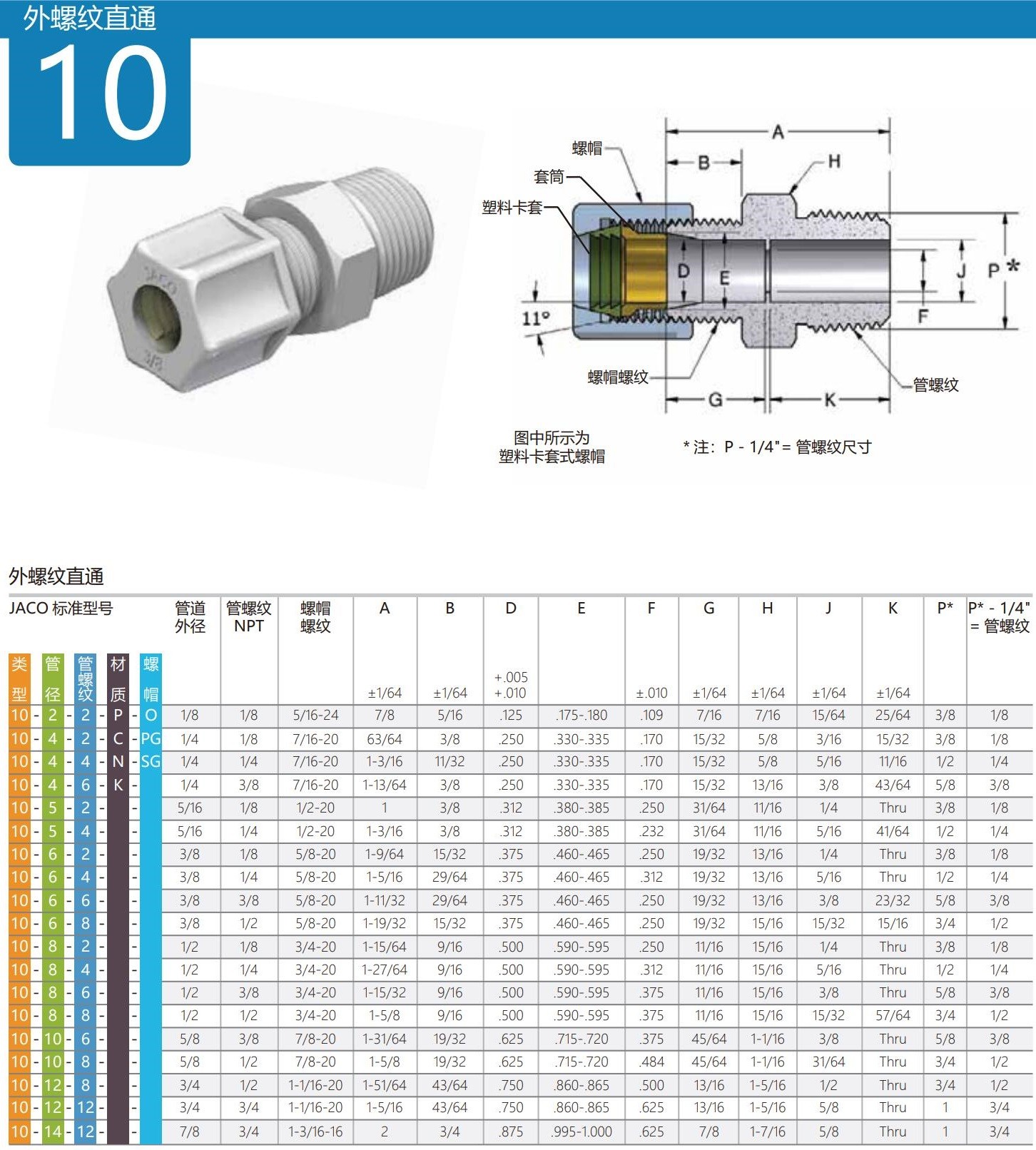

產品選型表
| 產品型號 | 材質 | 螺帽類型 | 管道外徑 | 螺紋尺寸 |
| 10-2-2 | P/C/N/K | O/PG/SG | 1/8" | 1/8"NPT |
| 10-4-2 | 1/4" | 1/8"NPT | ||
| 10-4-4 | 1/4" | 1/4"NPT | ||
| 10-4-6 | 1/4" | 3/8"NPT | ||
| 10-5-2 | 5/16" | 1/8"NPT | ||
| 10-5-4 | 5/16" | 1/4"NPT | ||
| 10-6-2 | 3/8" | 1/8"NPT | ||
| 10-6-4 | 3/8" | 1/4"NPT | ||
| 10-6-6 | 3/8" | 3/8"NPT | ||
| 10-6-8 | 3/8" | 1/2"NPT | ||
| 10-8-2 | 1/2" | 1/8"NPT | ||
| 10-8-4 | 1/2" | 1/4"NPT | ||
| 10-8-6 | 1/2" | 3/8"NPT | ||
| 10-8-8 | 1/2" | 1/2"NPT | ||
| 10-10-6 | 5/8" | 3/8"NPT | ||
| 10-10-8 | 5/8" | 1/2"NPT | ||
| 10-12-8 | 3/4" | 1/2"NPT | ||
| 10-12-12 | 3/4" | 3/4"NPT | ||
| 10-14-12 | 7/8" | 3/4"NPT |
