Intel公司的Stratix 10 SoC FPGA系列采用14nm三柵極(FinFET)和異構三維封裝系統工藝技術,比以前高性能SoC FPGA提供2x核性能和節省多達70%的功耗, 單片核架構多達550萬個邏輯單源(LE),多達96個全雙工收發器通路,收發器數據速率高達28.3Gbps,嵌入eSRAM (45 Mbit)和M20K (20 kbit)SRAM存儲器區塊,基于PLL的分?jǐn)?shù)合成和超低抖動LC振蕩器,硬PCI Express? Gen3 x16 IP區塊,每個收發器通路中有硬10GBASE-KR/40GBASE-KR4 FEC,每個引腳的硬存儲器控制器和PHY支持DDR4速率高達2666Mbps,以及硬定點和IEEE 754兼容硬浮點可變精度數字信號處理(DSP)區塊,計算功能達10 TFLOPS,主要用在計算和存儲,網絡,光傳輸網絡,廣播和軍用雷達和保密通信,醫療診斷掃描和圖像,測試測量以及無線5G網絡等.本文介紹了Stratix 10 SoC FPGA器件主要特性和創新要點,框圖,以及Stratix 10 SoC FPGA開發板主要特性,框圖和電路圖.

Intel ’s 14-nm Intel Stratix 10 SX SoCs deliver 2x core performance and up to 70% lower power over previous generation high-performance SoCs. Featuring several groundbreaking innovations, including the all new Intel Hyperflex? core architecture,this device family enables you to meet the demand for ever-increasing bandwidth and processing performance in you most advanced applications, while meeting your power budget.

Featuring several groundbreaking innovations, including the all new HyperFlex? core architecture, this device family enables you to meet the demand for ever-increasing bandwidth and processing performance in your most advanced applications, while meeting your power budget.

With an embedded hard processor system (HPS) based on a quad-core 64-bit ARM? Cortex?-A53, the Stratix 10 SoC devices deliver power efficient, application-class processing and allow designers to extend hardware virtualization into the FPGA fabric.Stratix 10 SoC devices demonstrate Intel’s commitment to high-performance SoCs and extend Intel’s leadership in programmable devices featuring an ARM-based processor system.

Important innovations in Stratix 10 FPGAs and SoCs include:

? All new HyperFlex core architecture delivering 2X the core performance compared to previous generation high-performance FPGAs
? Industry leading Intel 14-nm Tri-Gate (FinFET) technology
? Heterogeneous 3D System-in-Package (SiP) technology
? Monolithic core fabric with up to 5.5 million logic elements (LEs)
? Up to 96 full duplex transceiver channels on heterogeneous 3D SiP transceiver tiles
? Transceiver data rates up to 28.3 Gbps chip-to-chip/module and backplane
performance
? Embedded eSRAM (45 Mbit) and M20K (20 kbit) internal SRAM memory blocks
? Fractional synthesis and ultra-low jitter LC tank based transmit phase locked loops
(PLLs)
? Hard PCI Express? Gen3 x16 intellectual property (IP) blocks
? Hard 10GBASE-KR/40GBASE-KR4 Forward Error Correction (FEC) in every
transceiver channel
? Hard memory controllers and PHY supporting DDR4 rates up to 2666 Mbps per pin
? Hard fixed-point and IEEE 754 compliant hard floating-point variable precision digital signal processing (DSP) blocks with up to 10 TFLOPS compute performance with a power efficiency of 80 GFLOPS per Watt
? Quad-core 64-bit ARM Cortex-A53 embedded processor running up to 1.5 GHz in
SoC family variants
? Programmable clock tree synthesis for flexible, low power, low skew clock trees
? Dedicated secure device manager (SDM) for:
— Enhanced device configuration and security
— AES-256, SHA-256/384 and ECDSA-256/384 encrypt/decrypt accelerators and
authentication
— Multi-factor authentication
— Physically Unclonable Function (PUF) service and software programmable device configuration capability
? Comprehensive set of advanced power saving features delivering up to 70% lower
power compared to previous generation high-performance FPGAs
? Non-destructive register state readback and writeback, to support ASIC prototyping and other applications

Stratix 10 SoC FPGA應用:

With these capabilities, Stratix 10 FPGAs and SoCs are ideally suited for the most
demanding applications in diverse markets such as:
? Compute and Storage—for custom servers, cloud computing and data center acceleration
? Networking—for Terabit, 400G and multi-100G bridging, aggregation, packet processing and traffic management
? Optical Transport Networks—for OTU4, 2xOTU4, 4xOTU4
? Broadcast—for high-end studio distribution, headend encoding/decoding, edge
quadrature amplitude modulation (QAM)
? Military—for radar, electronic warfare, and secure communications
? Medical—for diagnostic scanners and diagnostic imaging
? Test and Measurement—for protocol and application testers
? Wireless—for next-generation 5G networks
? ASIC Prototyping—for designs that require the largest monolithic FPGA fabric with the highest I/O count

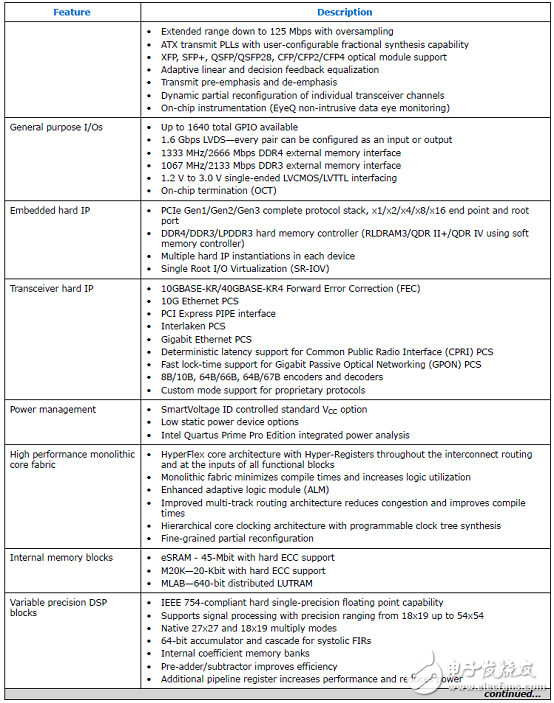

Stratix 10 SoC FPGA器件主要特性:
?

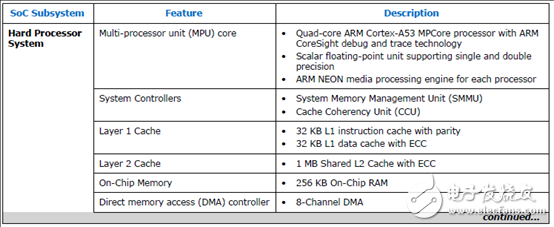

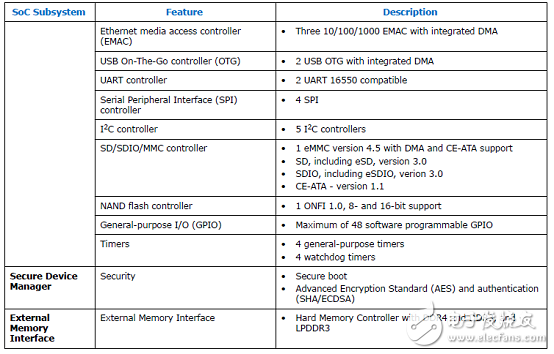

Stratix 10 SoC FPGA器件子系統主要特性:

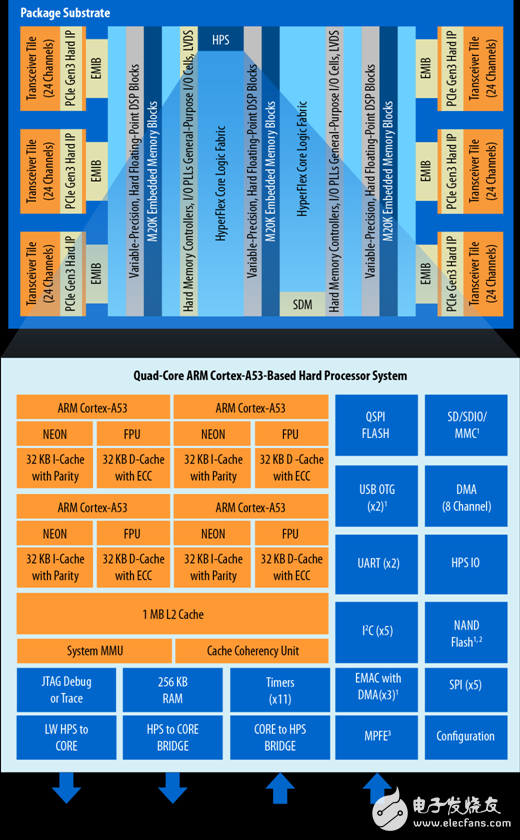

圖1. Stratix 10 SoC FPGA器件框圖

Stratix 10 SoC FPGA開發板

The Intel? Stratix??10 SoC Development Kit offers a quick and simple approach for developing custom ARM*?processor-based SoC designs. The Stratix 10 SoCs offer full software compatibility with previous generation SoCs, a broad ecosystem of ARM software and tools, and the enhanced FPGA and digital signal processing (DSP) hardware design flow.

The Intel Stratix 10 SoC development board provides a hardware platform for developing and prototyping low-power, high-performance and logic-intensive designs using Intel Stratix 10 SoC. The board provides a wide range of peripherals and memory interfaces to facilitate the development of Intel Stratix 10 SoC designs.

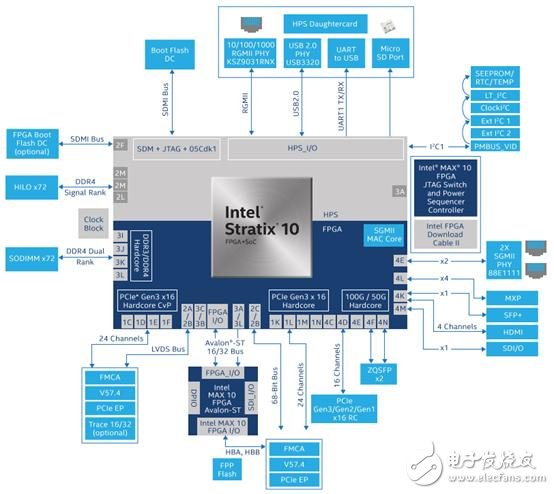

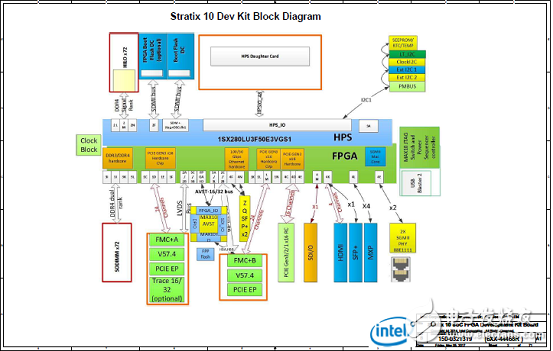

圖2. Stratix 10 SoC FPGA開發板框圖

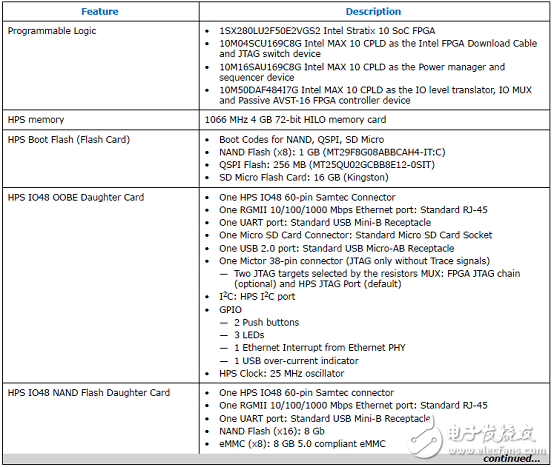

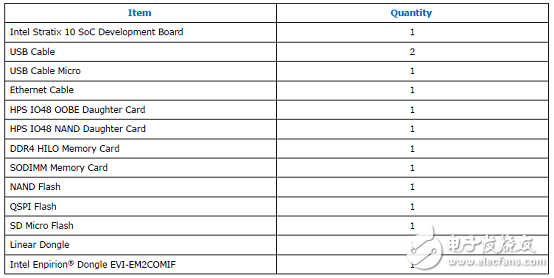

Stratix 10 SoC FPGA開發板包括:

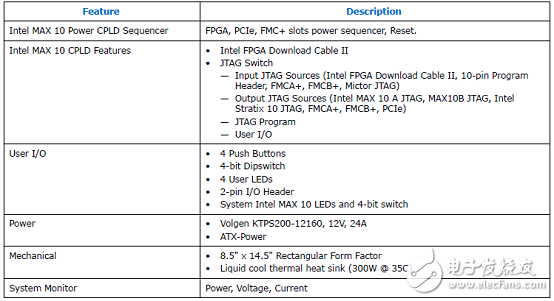

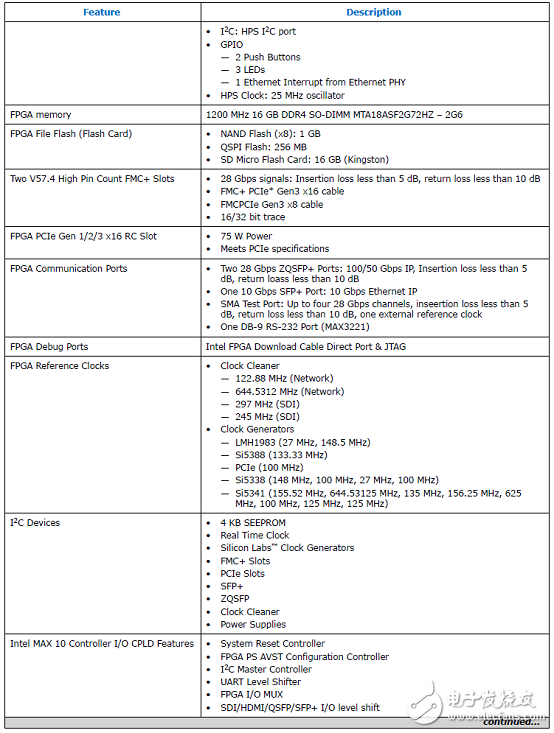

Stratix 10 SoC FPGA開發板主要特性:

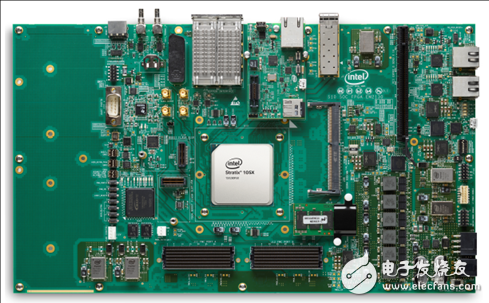

圖3. Stratix 10 SoC FPGA開發板外形圖(正面)

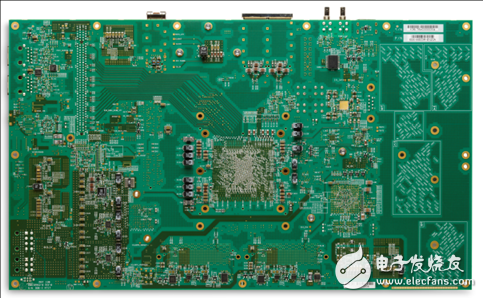

圖4. Stratix 10 SoC FPGA開發板外形圖(背面)

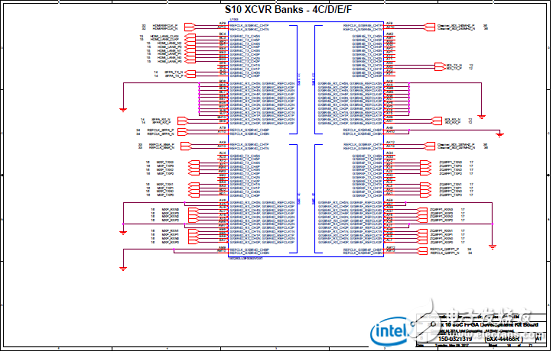

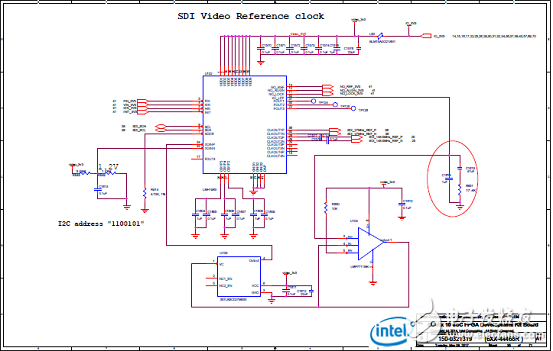

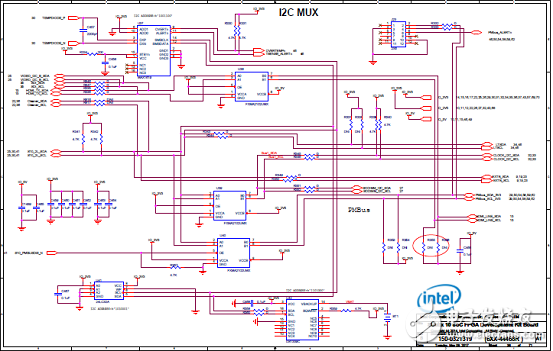

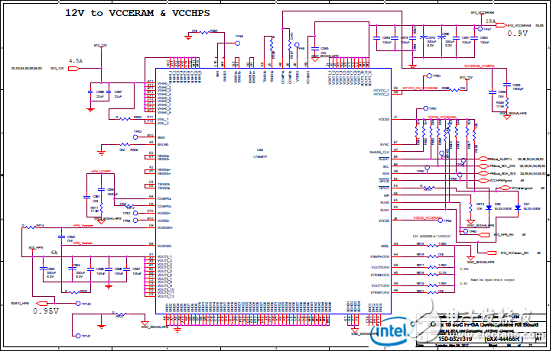

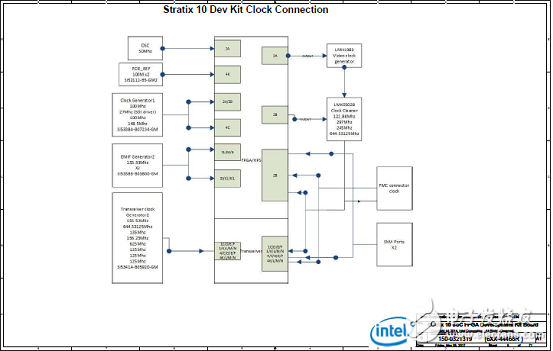

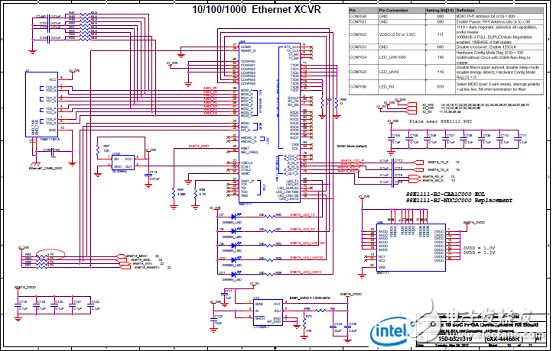

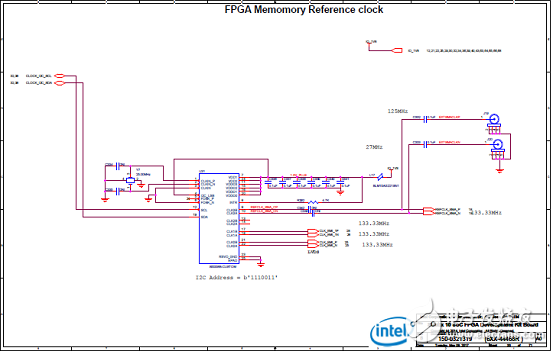

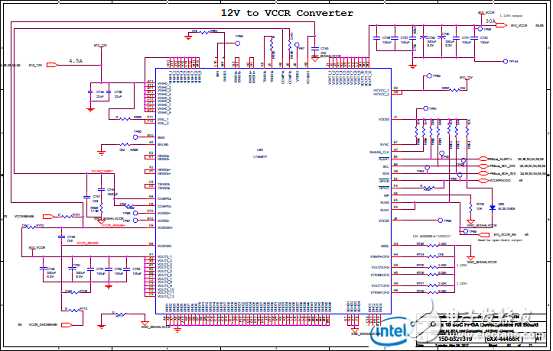

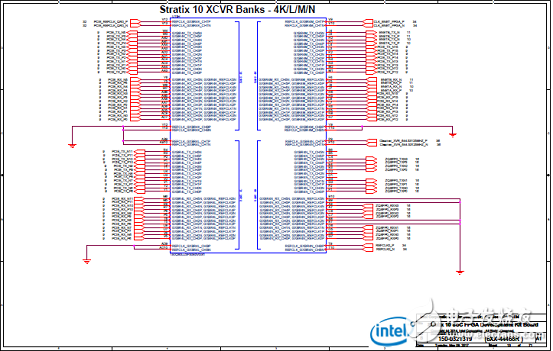

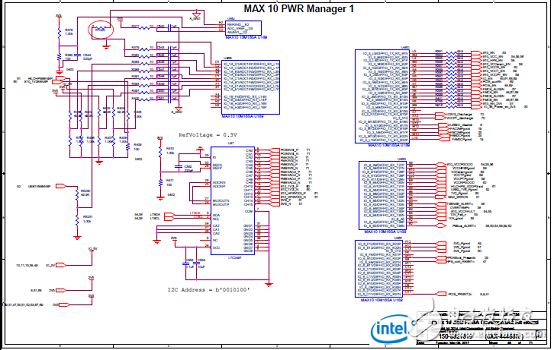

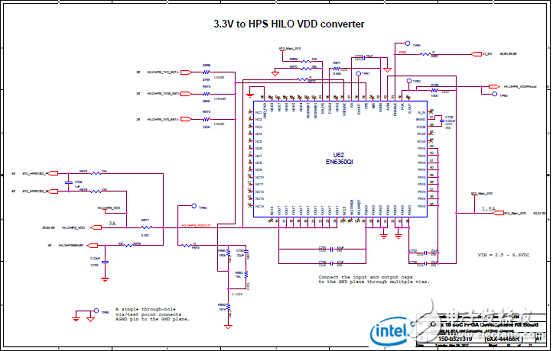

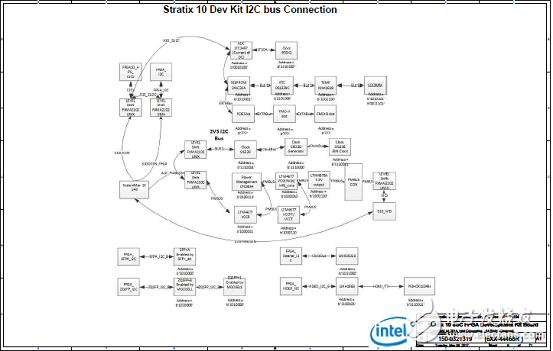

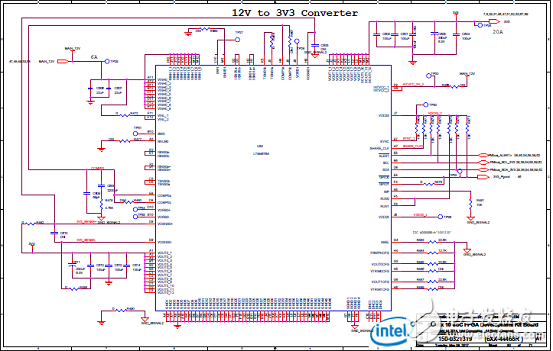

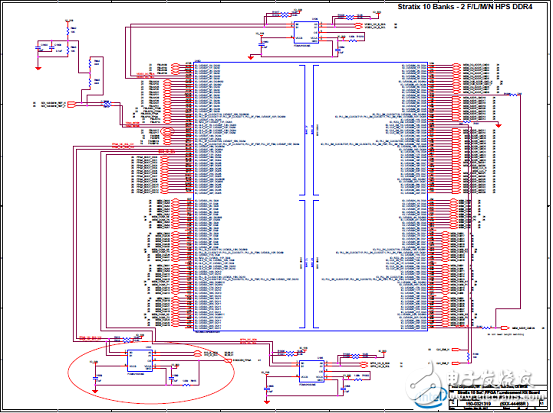

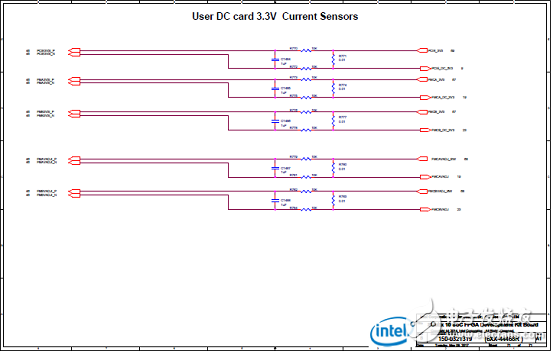

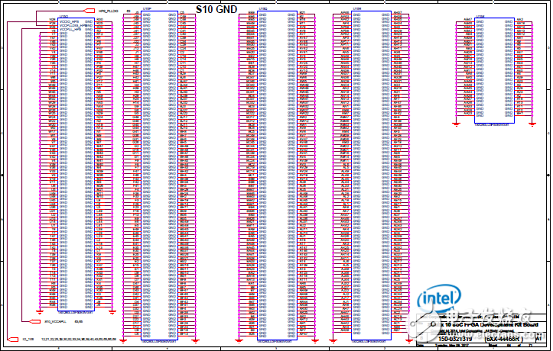

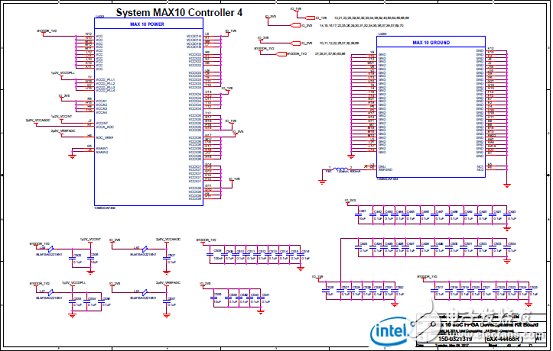

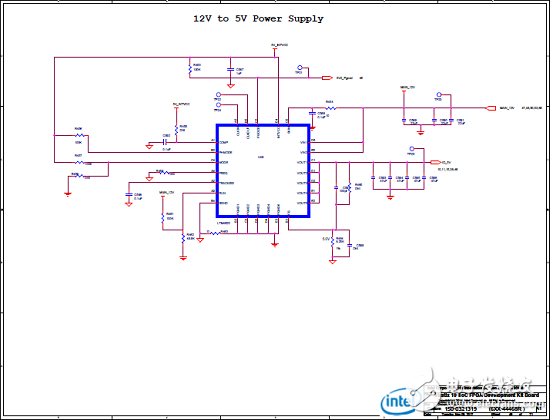

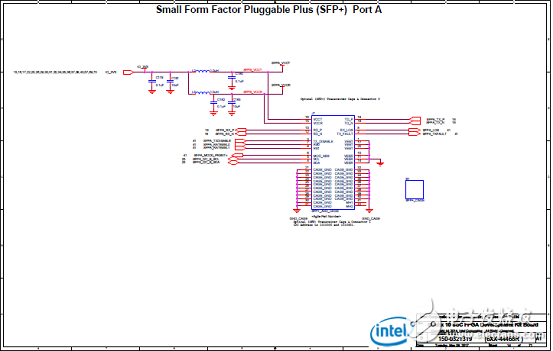

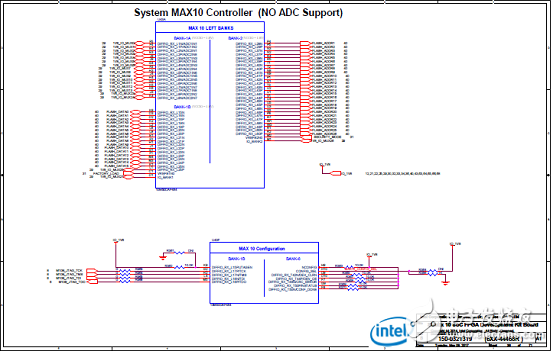

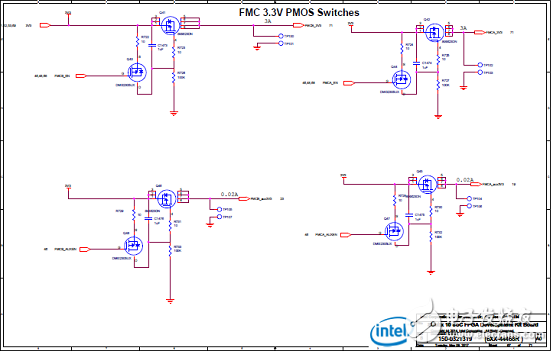

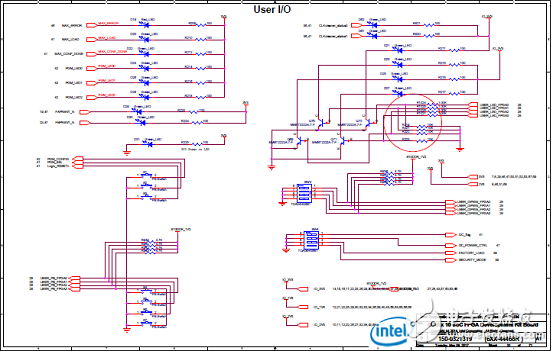

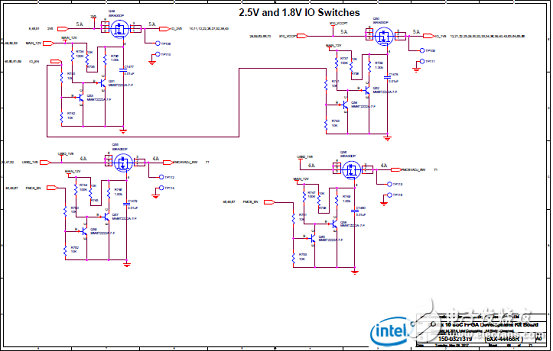

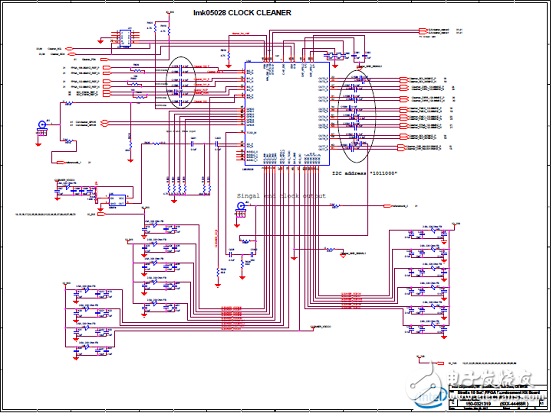

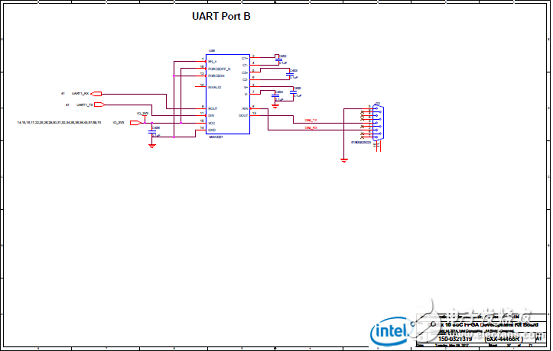

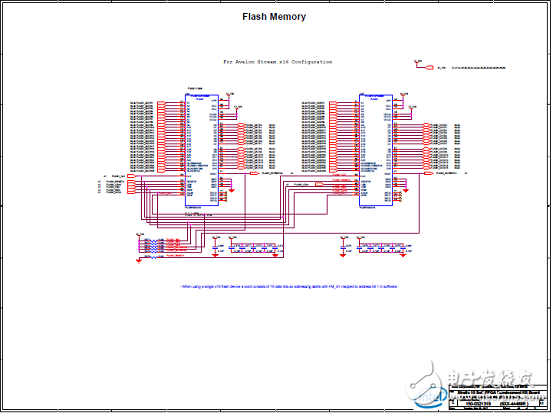

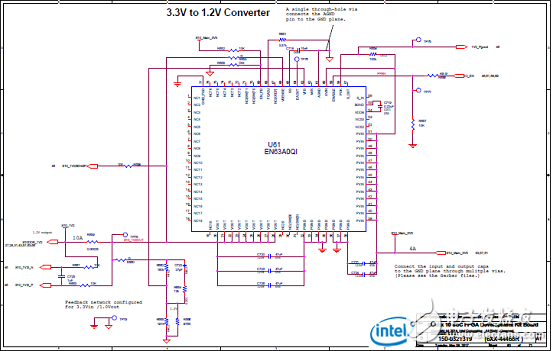

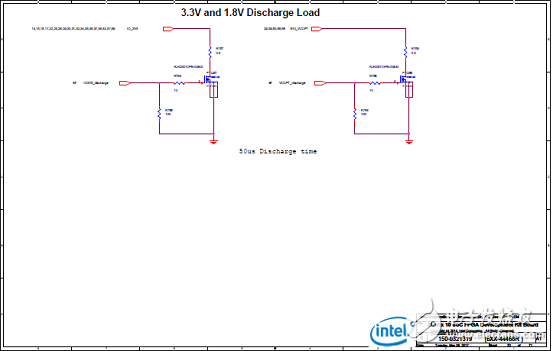

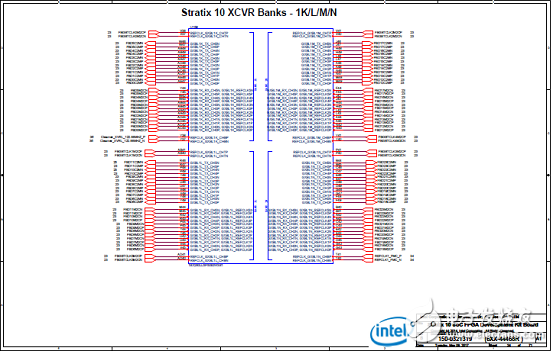

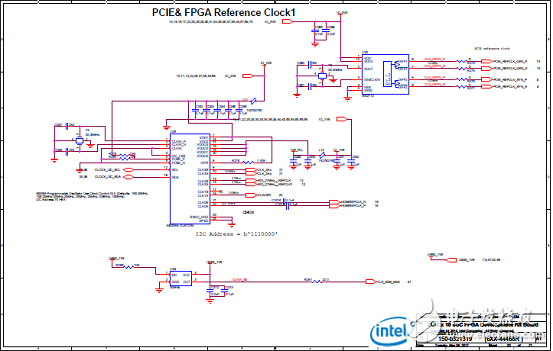

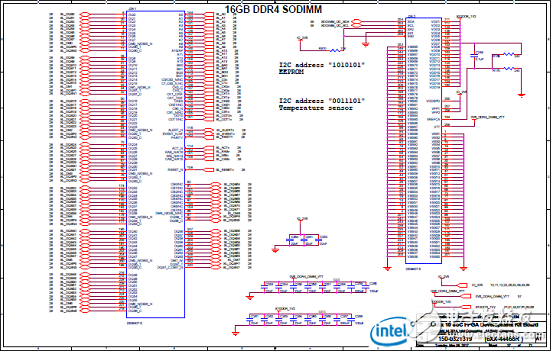

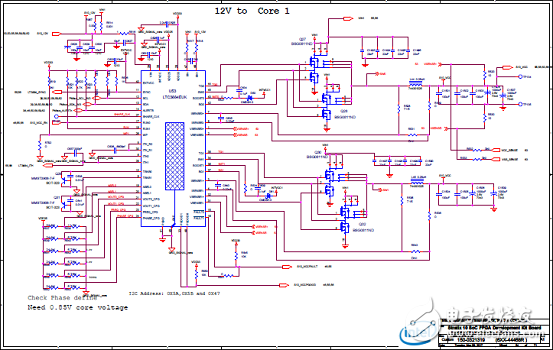

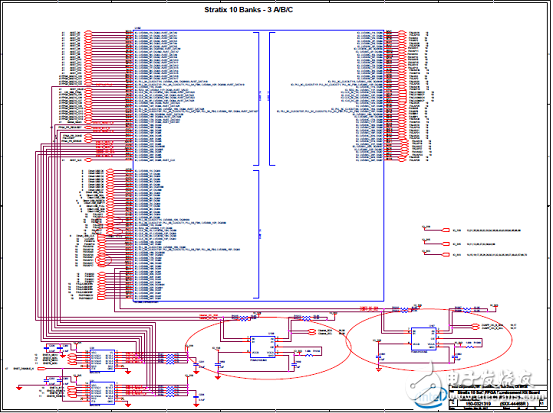

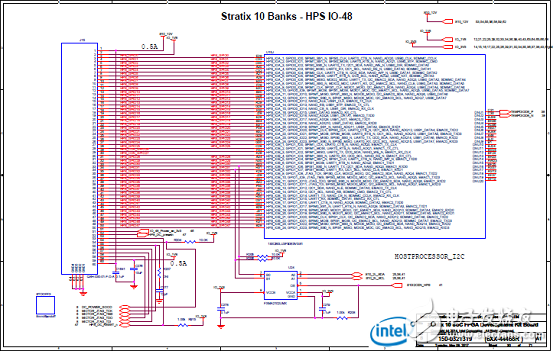

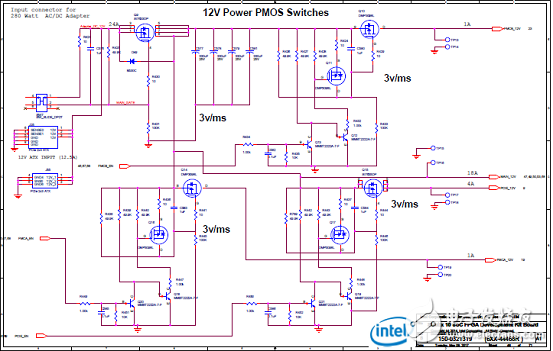

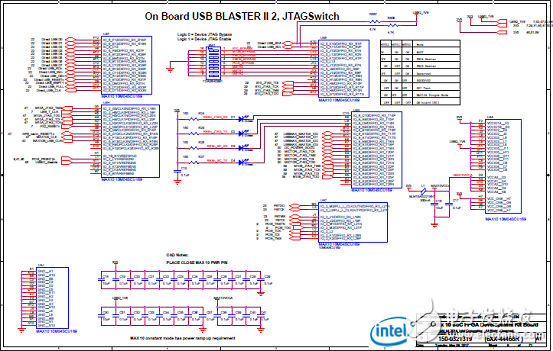

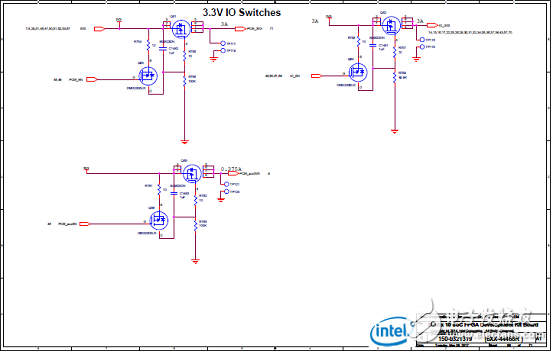

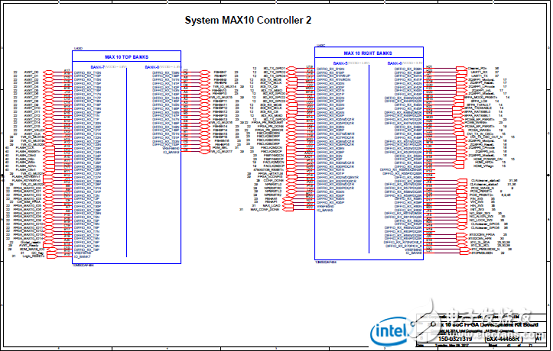

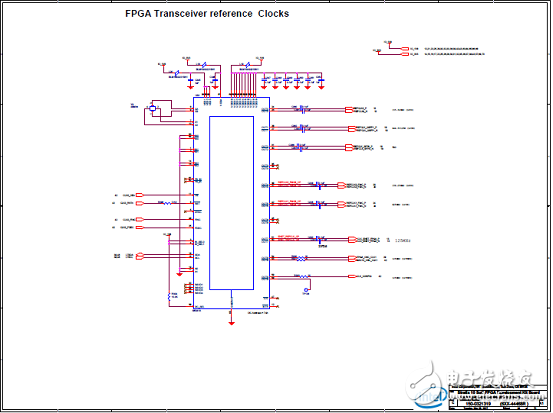

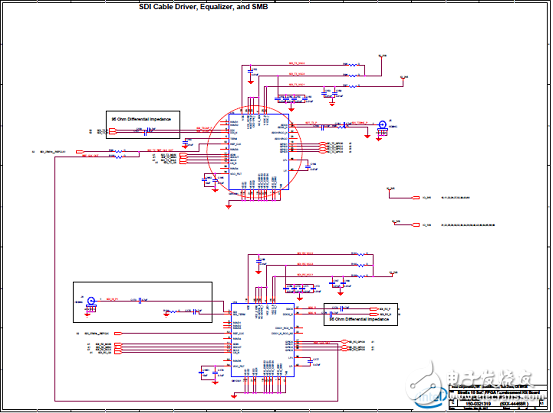

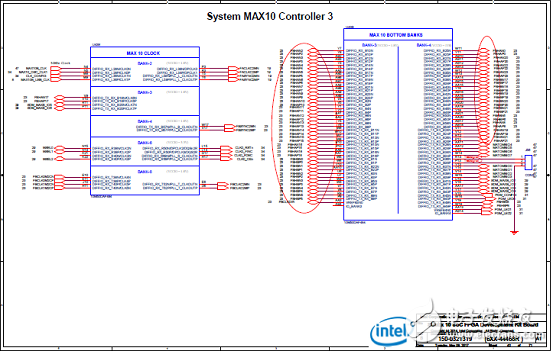

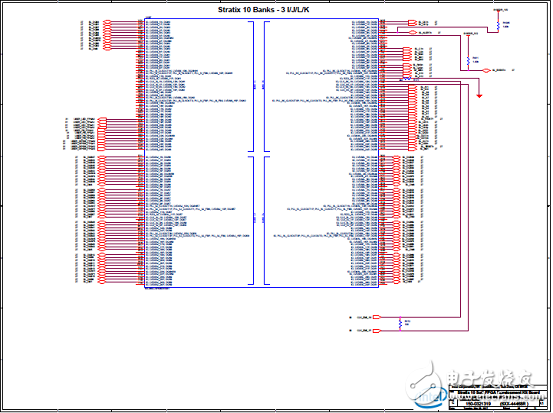

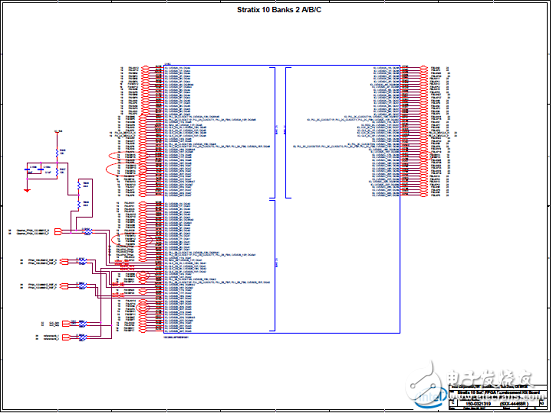

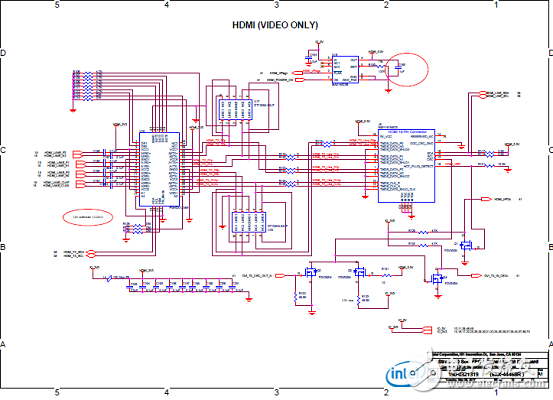

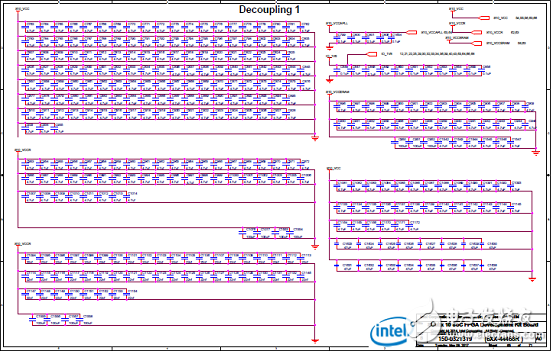

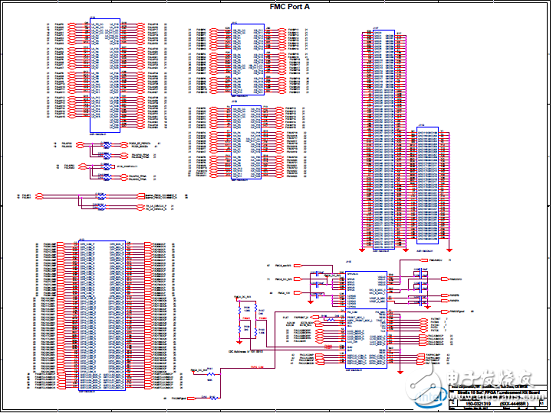

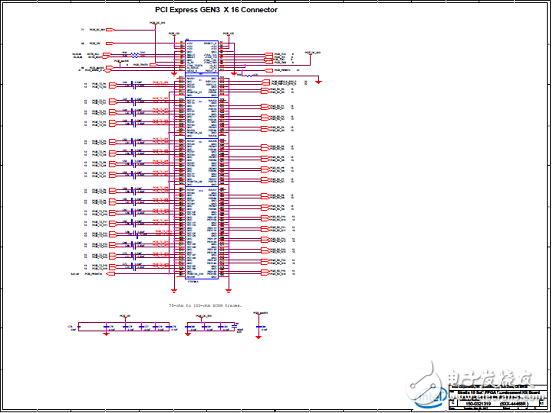

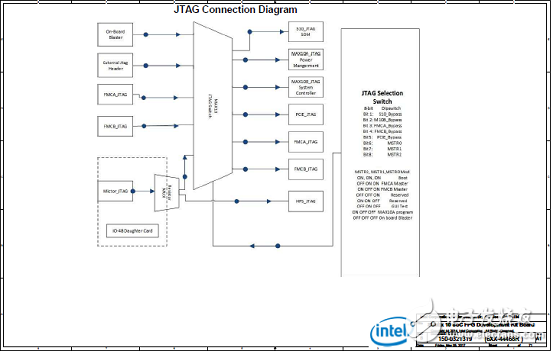

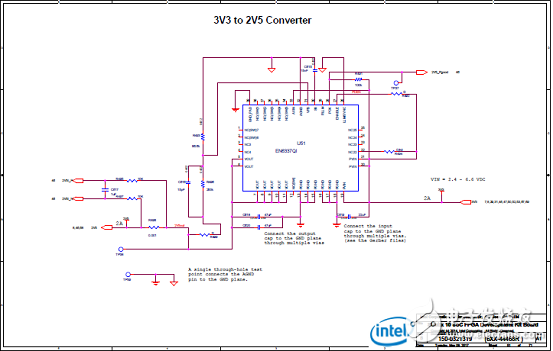

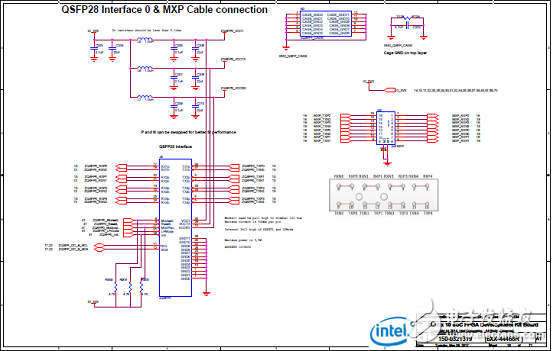

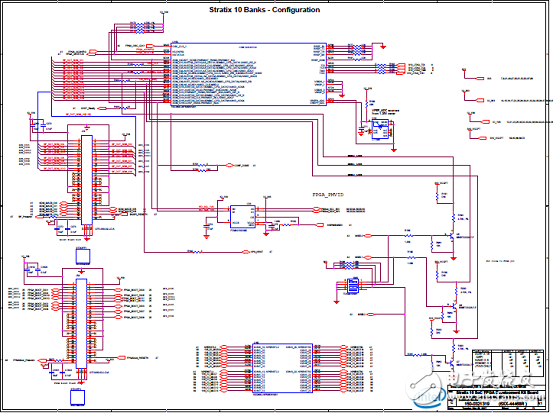

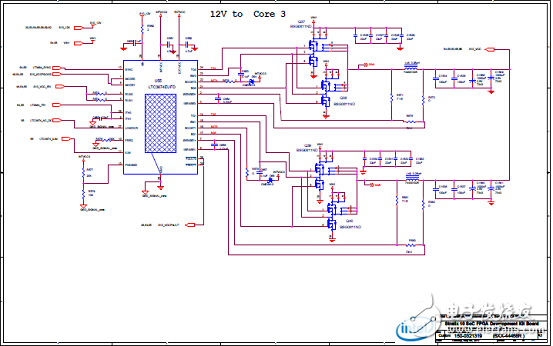

圖5. Stratix 10 SoC FPGA開發板電路圖(1)

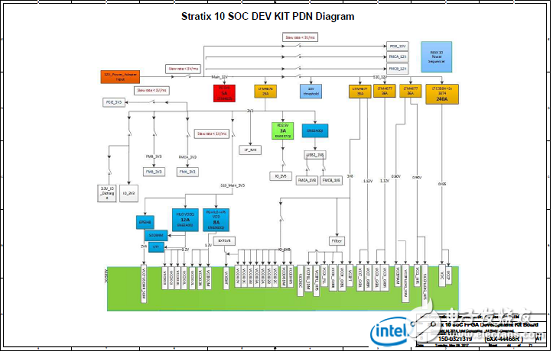

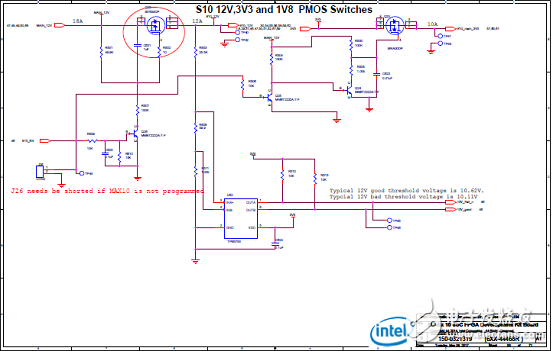

圖6. Stratix 10 SoC FPGA開發板電路圖(2)

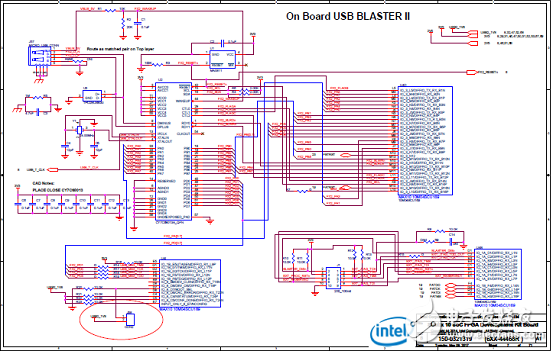

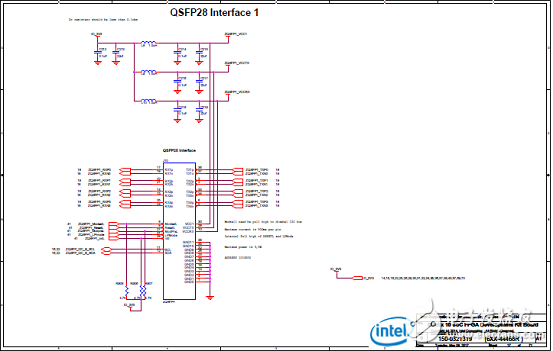

圖7. Stratix 10 SoC FPGA開發板電路圖(3)

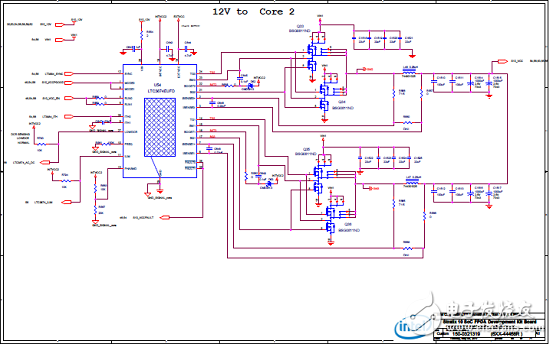

圖8. Stratix 10 SoC FPGA開發板電路圖(4)

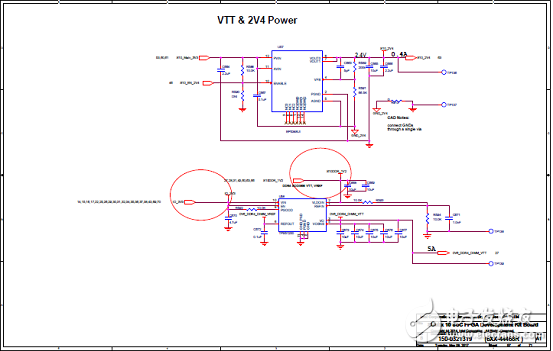

圖9. Stratix 10 SoC FPGA開發板電路圖(5)

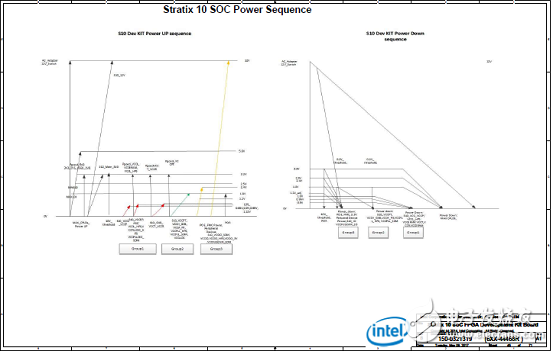

圖10. Stratix 10 SoC FPGA開發板電路圖(6)

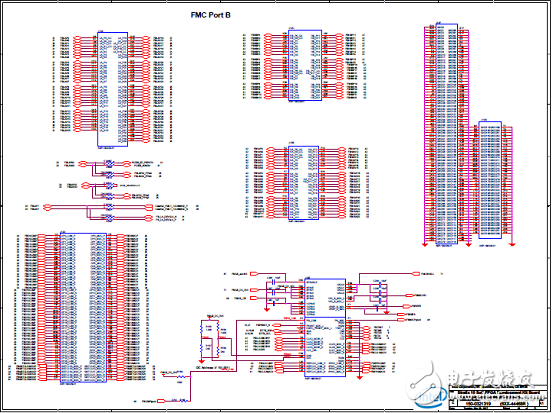

圖11. Stratix 10 SoC FPGA開發板電路圖(7)

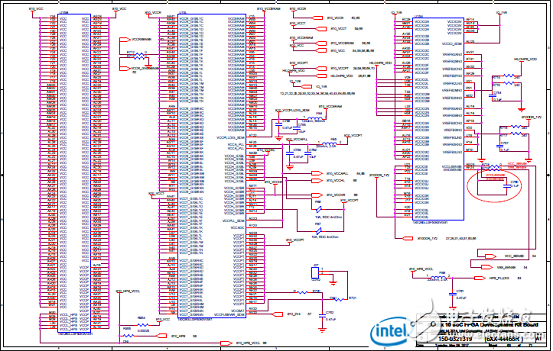

圖12. Stratix 10 SoC FPGA開發板電路圖(8)

圖13. Stratix 10 SoC FPGA開發板電路圖(9)

圖14. Stratix 10 SoC FPGA開發板電路圖(10)

圖15. Stratix 10 SoC FPGA開發板電路圖(11)

圖16. Stratix 10 SoC FPGA開發板電路圖(12)

圖17. Stratix 10 SoC FPGA開發板電路圖(13)

圖18. Stratix 10 SoC FPGA開發板電路圖(14)

圖19. Stratix 10 SoC FPGA開發板電路圖(15)

圖20. Stratix 10 SoC FPGA開發板電路圖(16)

圖21. Stratix 10 SoC FPGA開發板電路圖(17)

圖22. Stratix 10 SoC FPGA開發板電路圖(18)

圖23. Stratix 10 SoC FPGA開發板電路圖(19)

圖24. Stratix 10 SoC FPGA開發板電路圖(20)

圖25. Stratix 10 SoC FPGA開發板電路圖(21)

圖26. Stratix 10 SoC FPGA開發板電路圖(22)

圖27. Stratix 10 SoC FPGA開發板電路圖(23)

圖28. Stratix 10 SoC FPGA開發板電路圖(24)

圖29. Stratix 10 SoC FPGA開發板電路圖(25)

圖30. Stratix 10 SoC FPGA開發板電路圖(26)

圖31. Stratix 10 SoC FPGA開發板電路圖(27)

圖32. Stratix 10 SoC FPGA開發板電路圖(28)

圖33. Stratix 10 SoC FPGA開發板電路圖(29)

圖34. Stratix 10 SoC FPGA開發板電路圖(30)

圖35. Stratix 10 SoC FPGA開發板電路圖(31)

圖36. Stratix 10 SoC FPGA開發板電路圖(32)

圖37. Stratix 10 SoC FPGA開發板電路圖(33)

圖38. Stratix 10 SoC FPGA開發板電路圖(34)

圖39. Stratix 10 SoC FPGA開發板電路圖(35)

圖40. Stratix 10 SoC FPGA開發板電路圖(36)

圖41. Stratix 10 SoC FPGA開發板電路圖(37)

圖42. Stratix 10 SoC FPGA開發板電路圖(38)

圖43. Stratix 10 SoC FPGA開發板電路圖(39)

圖44. Stratix 10 SoC FPGA開發板電路圖(40)

圖45. Stratix 10 SoC FPGA開發板電路圖(41)

圖46. Stratix 10 SoC FPGA開發板電路圖(42)

圖47. Stratix 10 SoC FPGA開發板電路圖(43)

圖48. Stratix 10 SoC FPGA開發板電路圖(44)

圖49. Stratix 10 SoC FPGA開發板電路圖(45)

圖50. Stratix 10 SoC FPGA開發板電路圖(46)

圖51. Stratix 10 SoC FPGA開發板電路圖(47)

圖52. Stratix 10 SoC FPGA開發板電路圖(48)

圖53. Stratix 10 SoC FPGA開發板電路圖(49)

圖54. Stratix 10 SoC FPGA開發板電路圖(50)

圖55. Stratix 10 SoC FPGA開發板電路圖(51)

圖56. Stratix 10 SoC FPGA開發板電路圖(52)

圖57. Stratix 10 SoC FPGA開發板電路圖(53)

圖58. Stratix 10 SoC FPGA開發板電路圖(54)

圖59. Stratix 10 SoC FPGA開發板電路圖(55)

圖60. Stratix 10 SoC FPGA開發板電路圖(56)

圖60. Stratix 10 SoC FPGA開發板電路圖(56)

圖61. Stratix 10 SoC FPGA開發板電路圖(57)

圖62. Stratix 10 SoC FPGA開發板電路圖(58)

圖63. Stratix 10 SoC FPGA開發板電路圖(59)

圖64. Stratix 10 SoC FPGA開發板電路圖(60)

圖65. Stratix 10 SoC FPGA開發板電路圖(61)

圖66. Stratix 10 SoC FPGA開發板電路圖(62)

圖67. Stratix 10 SoC FPGA開發板電路圖(63)

圖68. Stratix 10 SoC FPGA開發板電路圖(64)

圖69. Stratix 10 SoC FPGA開發板電路圖(65)

圖70. Stratix 10 SoC FPGA開發板電路圖(66)

圖71. Stratix 10 SoC FPGA開發板電路圖(67)

圖72. Stratix 10 SoC FPGA開發板電路圖(68)

圖73. Stratix 10 SoC FPGA開發板電路圖(69)
