使用您的MCU的內存架構，提高應用效率

　　現代微控制器具有多種記憶元素，并了解他們的組織、性能的限制和功率的影響可能是實現一個高效應用的關鍵。特別是，用于代碼存儲的片上閃存的特性，用于數據存儲的片上SRAM的組織和片外存儲器的訪問特性將有顯著影響整體處理效率。讓我們檢查這些關鍵的內存元素，以更好地了解如何最有效地使用它們，以最大限度地提高性能，降低功耗和優化系統成本。

　　片上閃存

　　片上閃存可能是任何應用程序中最關鍵的存儲元件，因?yàn)樗ǔＪ翘幚砥鞯乃兄噶畹膩?lái)源。如果指令不能有效地獲取，則您的整體MCU性能將受到影響。向CPU傳遞指令有兩種不同的方法。在一種方法中，內存運行速度快，需要匹配的指令周期的CPU。瑞薩RX600組，例如，采用先進的Flash技術，提供高性能的零等待狀態訪問指令存儲器。這種方法導致簡化的CPU架構和確定的時序。

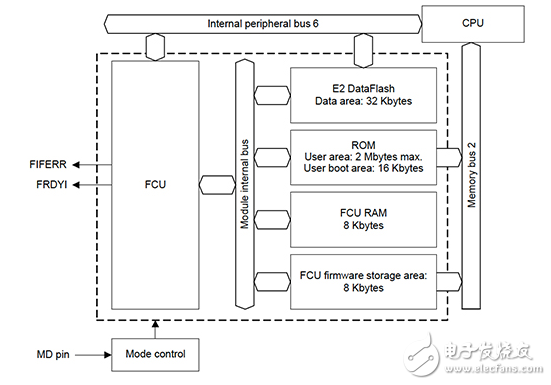

　　Access to Flash memory typically uses a two-port approach with CPU access， via a high-speed bus for read operations and slower access， using a Flash memory controller for write operations. The Flash memory interface for the RX600 is illustrated in Figure 1. Note that the Flash memory is further segmented into a data Flash section， for storing non-volatile information that is frequently modified， and the instruction section， which is typically considered as Read-Only Memory （ROM）， even though it uses Flash technology and can be reprogrammed many times by the user during manufacturing or via system updates. The Flash Control Unit （FCU） is a standalone specialized processor that managed Flash writes and has its own RAM and firmware memory blocks. The CPU can initiate FCU operations; this is accomplished using the peripheral bus shown at the top of Figure 1.
