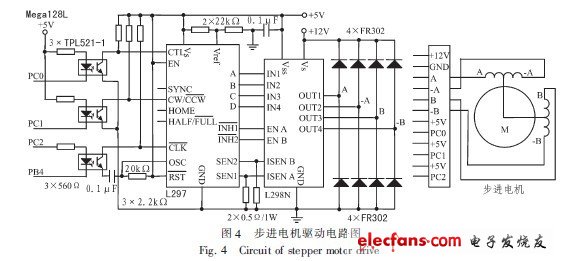

針對科研實驗中對拉壓千斤頂加載過程控制的需要，采用ATmega128單片機控制步進電機進而實現對執行系統的電動泵站實行自動控制。對力和位移的數據采集與處理及用步進電機控制電動泵站手柄的技術細節作了重點描述。通過單片機的A/D變換器對AMP放大模塊采集的電橋信號作量化處理，千斤頂?shù)牟倏厥直恢靡离妱佑捅瞄y門開啟的方向和大小作若干定位，單片機根據力或位移傳感器信號，實時控制步進電機驅動手柄旋轉到相應操控位置。

　　Abstract:

　　This article describes the use of ATmega128 AVR microcontroller series of DBS electric pumping stations and QF100/200 separate twoway hydraulic jack to automate the process of manipulating the work of the technical content. Articles on force and displacement data acquisition and processing， and stepper motor control electric pump with the handle of the key technical details were described. Through the MCU’s A / D converter module is collected on the AMP amplification quantify the signal bridge， jack handle position control valve opening according to the direction of electric pumps for a number of positioning and size of the microcontroller based on force or displacement sensor signals， real-time control stepper motor drive control handle rotate to the appropriate location.

?
