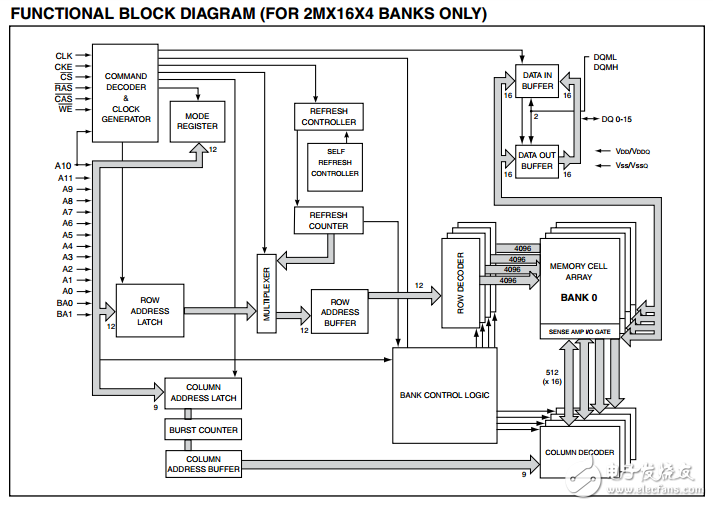

The 128Mb SDRAM is a high speed CMOS， dynamic random-access memory designed to operate in 3.3V Vdd and 3.3V Vddq memory systems containing 134，217，728 bits. Internally configured as a quad-bank DRAM with a synchronous interface. Each 33，554，432-bit bank is organized as 4，096 rows by 512 columns by 16 bits or 4，096 rows by 1，024 columns by 8 bits. The 128MbSDRAM includes anAUTOREFRESH MODE， and a power-saving， power-down mode. All signals are registered on the positive edge of the clock signal， CLK. All inputs and outputs are LVTTL compatible. The 128Mb SDRAM has the ability to synchronously burst data at a high data rate with automatic column-address generation， the ability to interleave between internal banks to hide precharge time and the capability to randomly change column addresses on each clock cycle during burst access. A self-timed row precharge initiated at the end of the burst sequenceisavailablewiththeAUTOPRECHARGEfunction enabled. Precharge one bank while accessing one of the otherthree banks will hide the precharge cycles andprovide seamless， high-speed， random-access operation. SDRAM readandwriteaccessesareburstorientedstarting at a selected location and continuing for a programmed number of locations in a programmed sequence. The registration of an ACTIVE command begins accesses， followed by a READ or WRITE command. The ACTIVE command in conjunction with address bits registered are used to select the bank and row to be accessed （BA0， BA1 select the bank; A0-A11 select the row）。 The READ or WRITE commands in conjunction with address bits registered are used to select the starting column location for the burst access. Programmable READ or WRITE burst lengths consist of 1， 2， 4 and 8 locations or full page， with a burst terminate option.
