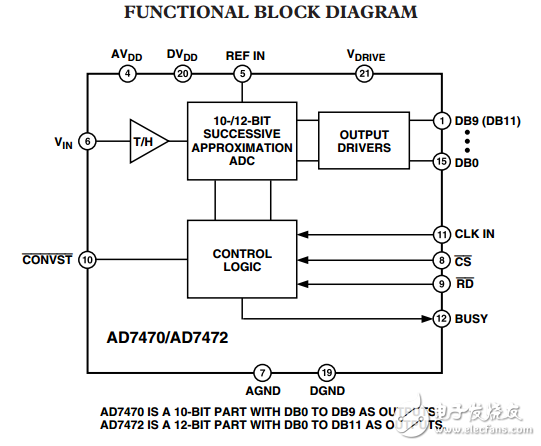

The AD7470/AD7472 are 10-bit/12-bit high speed， low power， successive approximation ADCs. The parts operate from a single 2.7 V to 5.25 V power supply and feature throughput rates up to 1.5 MSPS for the 12-bit AD7472 and up to 1.75 MSPS for the 10-bit AD7470. The parts contain a low noise， wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 1 MHz. The conversion process and data acquisition are controlled using standard control inputs， allowing easy interfacing to microprocessors or DSPs. The input signal is sampled on the falling edge of CONVST， and conversion is also initiated at this point. BUSY goes high at the start of conversion and goes low 531.66 ns after falling edge of CONVST （AD7472 with a clock frequency of 26 MHz） to indicate that the conversion is complete. There are no pipeline delays associated with the parts. The conversion result is accessed via standard CS and RD signals over a high speed parallel interface. The AD7470/AD7472 use advanced design techniques to achieve very low power dissipation at high throughput rates. With 3 V supplies and 1.5 MSPS throughput rates， the AD7470 typically consumes， on average， just 1.1 mA. With 5 V supplies and 1.75 MSPS， the average current consumption is typically 1.6 mA. The part also offers flexible power/throughput rate management. Operating the AD7470 with 3 V supplies and 500 kSPS throughput reduces the current consumption to 713 μA. At 5 V supplies and 500 kSPS， the part consumes 944 μA.
