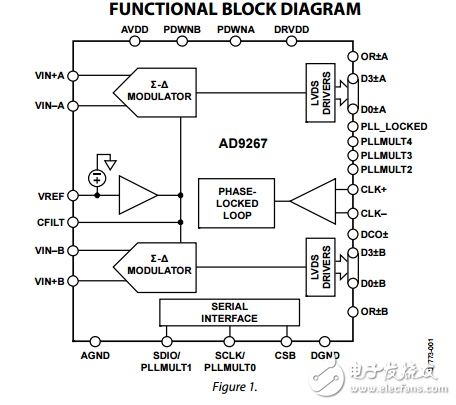

The AD9267 is a dual continuous time （CT） sigma-delta （Σ-Δ） modulator with ?88 dBc of dynamic range over 10 MHz real or 20 MHz complex bandwidth. The combination of high dynamic range， wide bandwidth， and characteristics unique to the continuous time Σ-Δ modulator architecture makes the AD9267 an ideal solution for wireless communication systems. The AD9267 has a resistive input impedance that significantly relaxes the requirements of the driver amplifier. In addition， a 32× oversampled fifth-order continuous time loop filter attenuates out-of-band signals and aliases， reducing the need for external filters at the input. The low noise figure of 15 dB relaxes the linearity requirements of the front-end signal chain components， and the high dynamic range reduces the need for an automatic gain control （AGC） loop. A differential input clock controls all internal conversion cycles. An external clock input or the integrated integer-N PLL provides the 640 MHz internal clock needed for the oversampled continuous time Σ-Δ modulator. The digital output data is presented as 4-bit， LVDS at 640 MSPS in twos complement format. A data clock output （DCO） is provided to ensure proper latch timing with receiving logic. Additional digital signal processing may be required on the 4-bit modulator output to remove the out-of-band noise and to reduce the sample rate.
