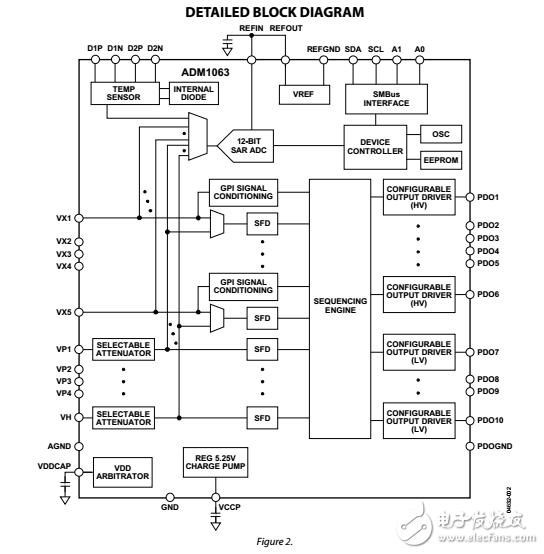

The ADM1063 is a configurable supervisory/sequencing device that offers a single-chip solution for supply monitoring and sequencing in multiple supply systems. In addition to these functions， the ADM1063 integrates a 12-bit ADC that can be used to accurately read back up to 12 separate voltages.

　　The device also provides up to 10 programmable inputs for monitoring undervoltage faults， overvoltage faults， or out-of-window faults on up to 10 supplies. In addition， 10 programmable outputs can be used as logic enables. Six of these programmable outputs can provide up to a 12 V output for driving the gate of an N-FET that can be placed in the path of a supply.

　　For more information about the ADM1063 register map， refer to the AN-698 Application Note.

　　Temperature measurement is possible with the ADM1063. The device contains one internal temperature sensor and two pairs of differential inputs for remote thermal diodes. These are measured by the 12-bit ADC.

　　The logical core of the device is a sequencing engine. This state-machine-based construction provides up to 63 different states.
