Marvell公司的ARMADA? 8040 (88F8040)是采用最新的ARMv8 CPU技術的完整的系統級芯片(SoC)解決方案,非常適合用在各種的SoHo, SMB以及企業經典應用.本文介紹了ARMADA? 8040主要特性和優勢,框圖,以及ARMADA? 8040開發板MACCHIATOBin主要特性和系統指標,框圖和電路圖.

The Marvell? ARMADA? 8040 (88F8040) is a complete system-on-chip (SoC) solution based on the latest ARMv8 high-performance CPU technology, ideally suited for a wide range of SoHo, SMB and Enterprise class applications. The first two products of the ARMADA? 8K Family, the Armada? 8040 and the Armada? 8020 include, respectively, a quad-core and a dual-core ARM Cortex-A72, bringing a high level of performance, integration, and efficiency, and delivers an optimal Performance-per-Watt in the embedded markets. 88F8040 built as part of Marvell’s MoChi family of products. As the MCi interface is essentially transparent to the driver, all the connected MCi will appear to the driver as though it is an integrated function in the 88F8040 itself, enabling a Virtual System-on-Chip (vSoC). The 88F8040 also supports standard high speed DDR4 interface in 32b bus widths, with optional ECC function.

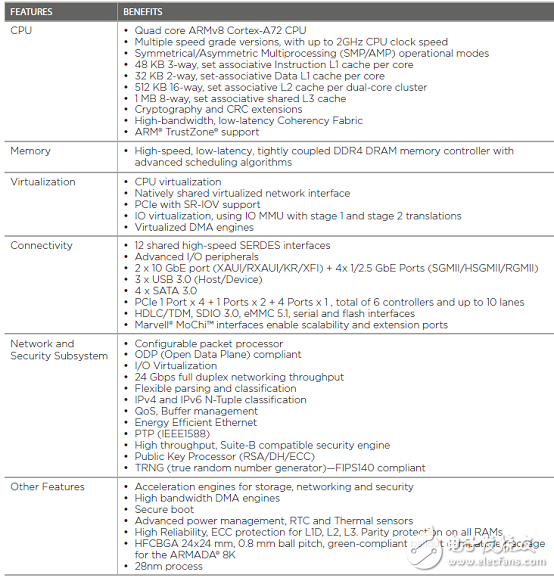

ARMADA? 8040主要特性和優勢:
?

ARMADA? 8040目標應用:

? Control Plane Card - Paired with Marvell’s industry-leading wired networking solutions, the RMADA? 8KFamily is perfectly suited for next generation control plane cards, delivering the right CPU performance andmemory throughput, along with key features such as 64b processing and virtualization.

? Gateway - Paired with Marvell’s industry-leading wireless and wired networking solutions, the ARMADA?8K Family is perfectly suited for Enterprise and Home Gateway applications delivering the right balancebetween performance, power and price, along with key features such as security acceleration andvirtualization.

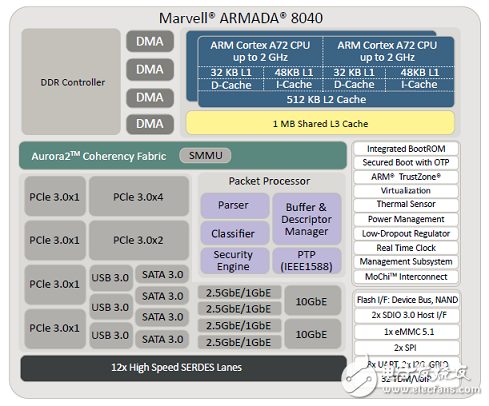

圖1.ARMADA? 8040框圖

ARMADA? 8040開發板MACCHIATOBin

MACCHIATOBin is the Marvell ARMADA 8040 Community Board, a first-of-its-kind Cost-Effective, High Performance and Networking ARMv8 community board.

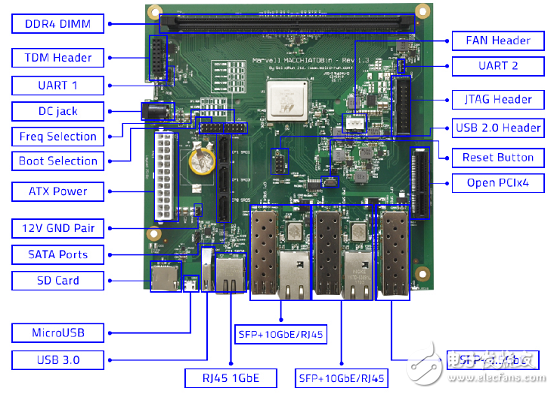

圖2.開發板MACCHIATOBin外形圖

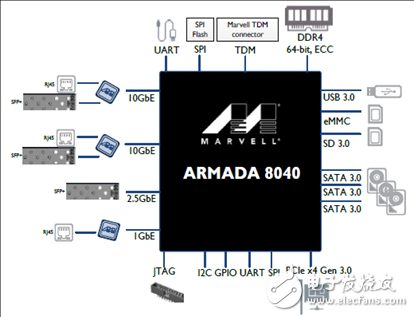

圖3.開發板MACCHIATOBin框圖

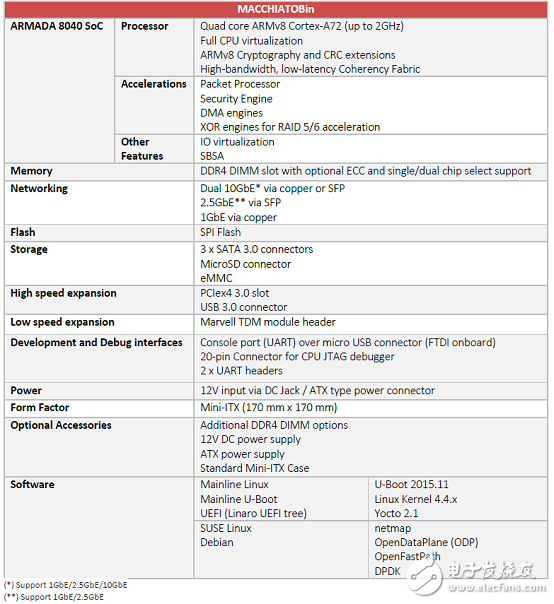

開發板MACCHIATOBin系統指標:

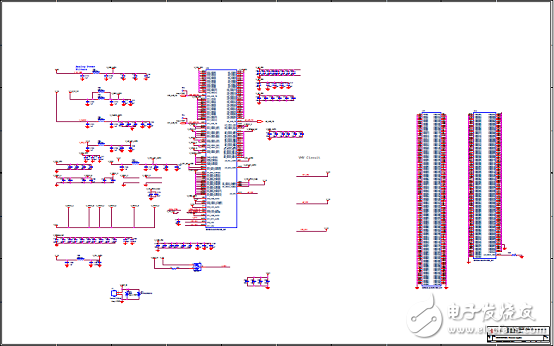

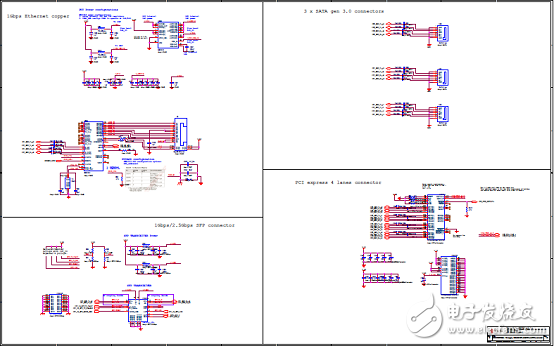

圖4.開發板MACCHIATOBin電路圖(1)

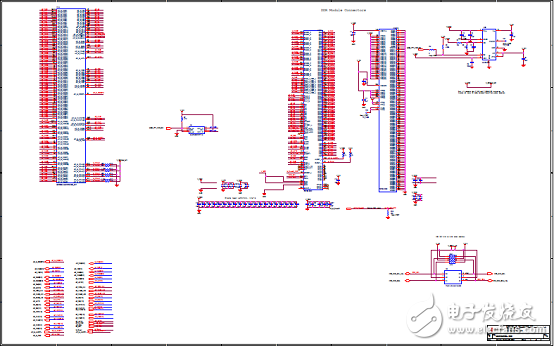

圖5.開發板MACCHIATOBin電路圖(2)

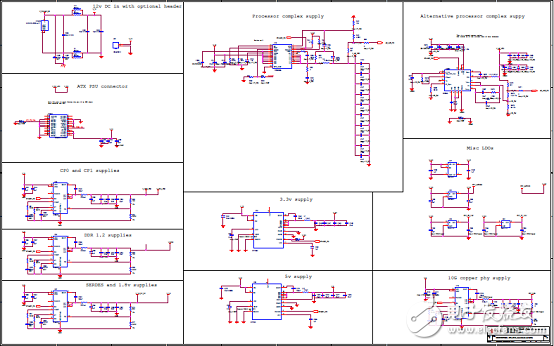

圖6.開發板MACCHIATOBin電路圖(3)

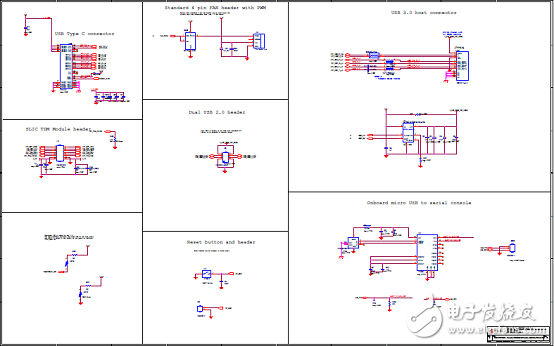

圖7.開發板MACCHIATOBin電路圖(4)

圖8.開發板MACCHIATOBin電路圖(5)

圖9.開發板MACCHIATOBin電路圖(6)

圖10.開發板MACCHIATOBin電路圖(7)
