Description
SC2996 is a high efficiency,
monolithic synchronous step-down DC/DC
converter  utilizing  a  Jitter  frequency,
average current mode control architecture.
Capable of delivering up to 6A continuous
load with excellent line and load regulation.
The device operates from an input voltage
range of 7V to 38V and provides an
adjustable output voltage from 3.3V to 25V.
The SC2996 features short circuit
and thermal protection circuits to increase
system reliability. The internal soft-start
avoids input inrush current during startup.
The SC2996 require a minimum
number of external components. and a wide
array of protection features to enhance
reliability
Features
? Wide VIN Range : 7V to 38V
? 6A Continuous Output Current
? Up to 95% Efficiency @ 24V Input
? Dual-Channel CC/CV Mode Control
? Brick Wall Current Limit
? Built in Adjustable Line-Compensation
? Adjustable Output Voltages
? +/-1.5% Output Voltage Accuracy
? +/- 5% Current Limit Accuracy.
? Integrated 14mΩ High Side Switch
? Integrated 14mΩ Low Side Switch
? Programable Frequency(130KHz~300KHz)
? Burst Mode Operation at Light Load
? Internal loop Compensation
? Internal Soft Start

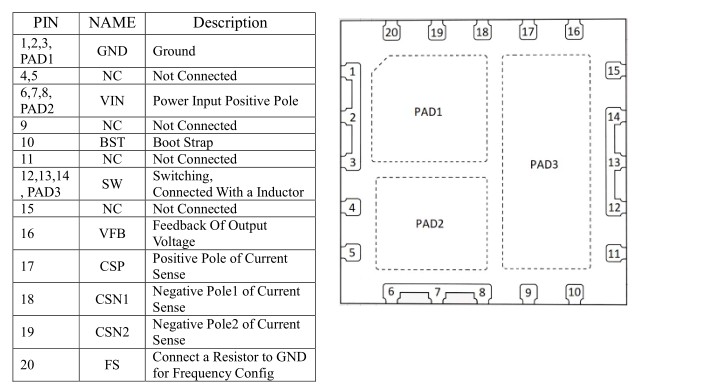

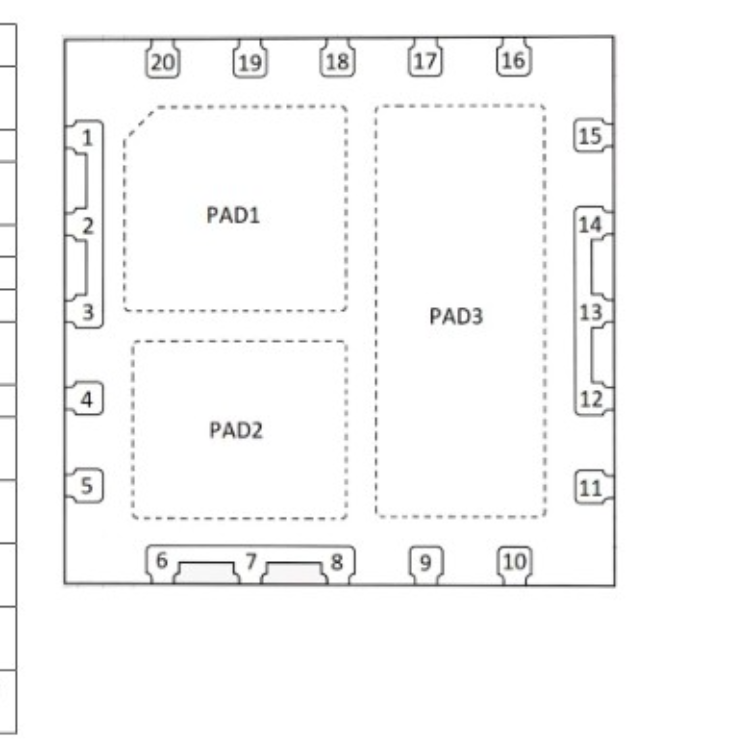

? Thermally Enhanced QFN5*5 Package
Applications
?  Car Charger
?  Rechargeable Portable Devices
?  Networking Systems
?  Distributed Power Systems
