nxp公司的MC33GD3100是高檔單路IGBT柵極驅動器，集成了電流隔離和低開態電阻驅動晶體管，提供高充電和放電電流，低動態飽和電壓，軌到軌電壓控制，通過INTB引腳和SPI接口能管理嚴重故障并報告故障與狀態。和安全等級ASIL D ISO 26262規范兼容，功率范圍大于125kW，滿足AEC-Q100 grade 1規范，主要用在汽車電子。本文介紹了MC33GD3100主要特性和優勢，框圖，簡化應用框圖以及半橋評估板FRDM-GD3100EVM主要特性和電路圖。

　　The MC33GD3100 is an advanced single channel gate driver for IGBTs. Integrated Galvanic isolation and low on-resistance drive transistors provide high charging and discharging current， low dynamic saturation voltage and rail-to-rail gate voltage control. Current and temperature sense minimizes IGBT stress during faults. Accurate and configurable under voltage lockout （UVLO） provides protection while ensuring sufficient gate drive voltage headroom.

　　The MC33GD3100 autonomously manages severe faults and reports faults and status via INTB pin and an SPI interface. It is capable of directly driving gates of most IGBTs. Self test， control and protection functions are included for design of high reliability systems （ASIL C/D）。 It meets the stringent requirements of automotive applications and is fully AEC-Q100 grade 1 qualified.

　　MC33GD3100主要特性和優勢：

　　? Compatible with current sense and temp sense IGBTs

　　? Fast short-circuit protection for IGBTs with current sense feedback

　　? Compliant with ASIL D ISO 26262 functional safety requirements

　　? SPI interface for safety monitoring， programmability and flexibility

　　? Integrated Galvanic signal isolation

　　? Integrated gate drive power stage capable of 10 A peak source and sink

　　? Interrupt pin for fast response to faults

　　? Compatible with negative gate supply

　　? Compatible with 200 V to 1700 V IGBTs， power range 》 125 kW

　　? AEC-Q100 grade 1 qualified

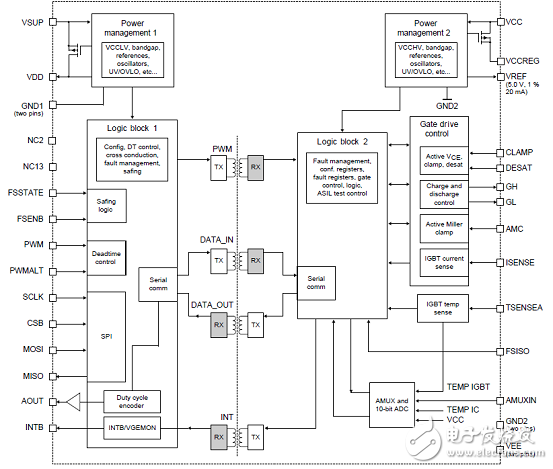

　　圖1.MC33GD3100框圖

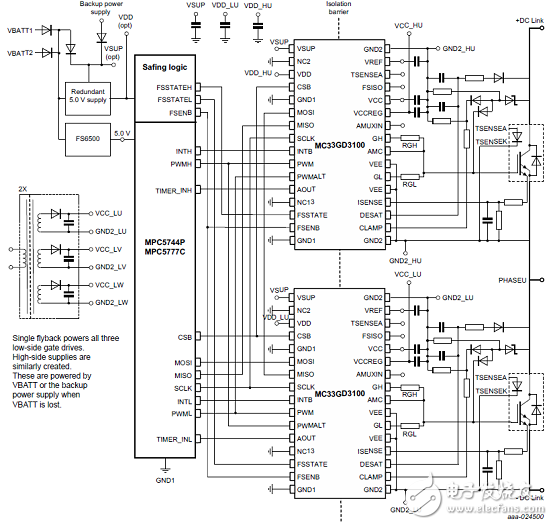

　　圖2. MC33GD3100簡化應用框圖

　　半橋評估板FRDM-GD3100EVM

　　The FRDM-GD3100EVM is a half-bridge evaluation kit populated with two MC33GD3100 single channel IGBT gate drive devices on a half-bridge evaluation board. The kit includes the Freedom KL25Z microcontroller hardware for interfacing a PC installed with SPIGen software for communication to the SPI registers on the MC33GD3100 gate drive devices in either daisy chain or standalone configuration.

　　The GD3100 translator board is used to translate 3.3 V signals to 5.0 V signals between the MCU and MC33GD3100 gate drivers. The evaluation kit can be connected to a single phase of a Fuji M653 or M6+ IGBT module for half-bridge evaluations and applications development.

　　半橋評估板FRDM-GD3100EVM主要特性：

　　Capability to connect to Fuji M653 or M6+ IGBT modules for half-bridge evaluations

　　Daisy Chain SPI communication capable

　　Easy access to power， ground， and signal test points

　　Easy to install and use SPIGen GUI for interfacing via SPI through PC. Software includes Double Pulse and Short Circuit testing capability.

　　FRDM-GD3100EVM： Half-bridge evaluation board for GD3100
